ELMASONIC XTRA and XTRA ST

Stationary ultrasonic units

Elmasonic xtra ST: xtra robust and xtra cleaning power for high-throughput applications

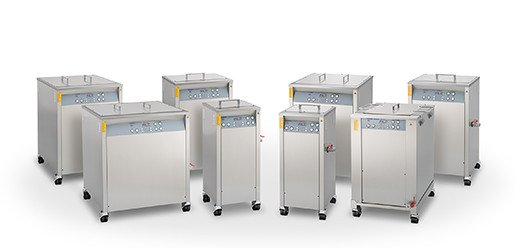

• Mobile single-tank units in 8 sizes
• Multi-frequency technology at 25/45 kHz for cleaning stubborn contaminants and sensitive surfaces
• Dynamic, Pulse and Sweep functions for greater ultrasonic power
• Durable and robust units with special stainless steel tanks
• Simple and clear operation with splash water protection

Elmasonic xtra STRobust and powerful stationary units with multi-frequency technology

The Elmasonic X-tra ST stationary ultrasonic units are designed for use in production, workshops and service environments. The complete equipment makes operation simpler and more efficient. Even stubborn contaminants such as polishing compounds are easily removed at 25 kHz. At 45 kHz, sensitive surfaces are gently cleaned and degreased. The individual functions "Sweep", "Pulse" and "Dynamic" enable even more effective cleaning. All functions and cleaning parameters — such as timer and heating selection as well as the ultrasonic frequency — are set on the front-mounted control panel, are easy to use and always visible.The Elmasonic X-tra ST units are designed for the most demanding continuous operation conditions. The oscillating tanks are constructed from special stainless steel, making the units extremely robust and durable. A 3-year warranty is provided for 8-hour-per-day service use.

Functions of the Elmasonic xtra ST stationary ultrasonic units:

• Multi-frequency with 25/45 kHz: individually adjustable frequencies depending on the type of cleaning.
• 25 kHz for coarse cleaning of parts and removal of stubborn contaminants such as lapping and polishing compounds.
• 45 kHz for cleaning sensitive parts and surfaces, removing contaminants such as oils, drilling emulsions and greases. Also ideal for hard surfaces such as metal and glass in industry, craft work and jewellery manufacturing.
• Sweep function for optimal distribution of the sound field and cleaning power throughout the ultrasonic bath.
• The Pulse function increases the peak ultrasonic power. It enhances cleaning power to also remove extremely stubborn contaminants.
• Dynamic function: the Sweep and Pulse functions operate with automatic alternation. Ultrasonic power can be increased by up to 20% at any given moment. The homogeneous distribution of ultrasound in the ultrasonic bath also increases cleaning efficiency.
• Short heating times thanks to temperature control (30 - 80°C).
• Safe for users with safety shut-off.
• Ease of use thanks to quick replacement of the generator and control unit. This allows units to be back in service quickly and maximizes availability for the user.

Technical specifications

xtra ST 300H
xtra ST 500 H
xtra ST 600H
xtra ST 800H
Ultrasonic frequency (kHz)
22/45
22/45
22/45
22/45
Working volume (l)
22.0
42.0
45.0
70.0
Max capacity (l)
30.0
50.0
58.0
83.0
Effective ultrasonic power - Normal, Pulse (W)
480
540 / 600
800 / 900
900 / 1000
Effective ultrasonic power - Dynamic (W)
600
600
1000
1000
Heating power (W)
1400
1400
1400
4200
External device dimensions L/W/H (mm)
500 / 550 / 936
500 / 550 / 936
670 / 650 / 936
670 / 650 / 936
Internal tank dimensions L/W/H (mm)
330 / 300 / 300
330 / 300 / 500
500 / 330 / 350
500 / 330 / 500
Max load (kg)
12.0
12.0
25.0
40.0
Internal basket dimensions L/W/H (mm)
257 / 233 / 166
257 / 233 / 366
419 / 259 / 214
402 / 259 / 364
Weight (kg)
40.0
45.0
55.0
61.0

xtra ST 1400H
xtra ST 1600 H
xtra ST 1900S
xtra ST 2500H
Ultrasonic frequency (kHz)
22/45
22/45
22/45
22/45
Working volume (l)
97.0
133.0
134.0
215.0
Max capacity (l)
126.0
162.0
187.0
255.0
Effective ultrasonic power - Normal, Pulse (W)
1440
1600 / 1800
1000
1800 / 2000
Effective ultrasonic power - Dynamic (W)
1800
2000
1000
2000
Heating power (W)
5000
7500
2300
7500
External device dimensions L/W/H (mm)
885 / 850 / 936
885 / 850 / 936
610 / 900 / 940
1035 / 900 / 936
Internal tank dimensions L/W/H (mm)
600 / 600 / 350
600 / 600 / 450
410 / 650 / 720
750 / 650 / 520
Max load (kg)
50.0
50.0
40.0
50.0
Internal basket dimensions L/W/H (mm)
490 / 525 / 202
480 / 525 / 292
360 / 560 / 240
630 / 575 / 360
Weight (kg)
87.0
93.0
75.0
107.0
