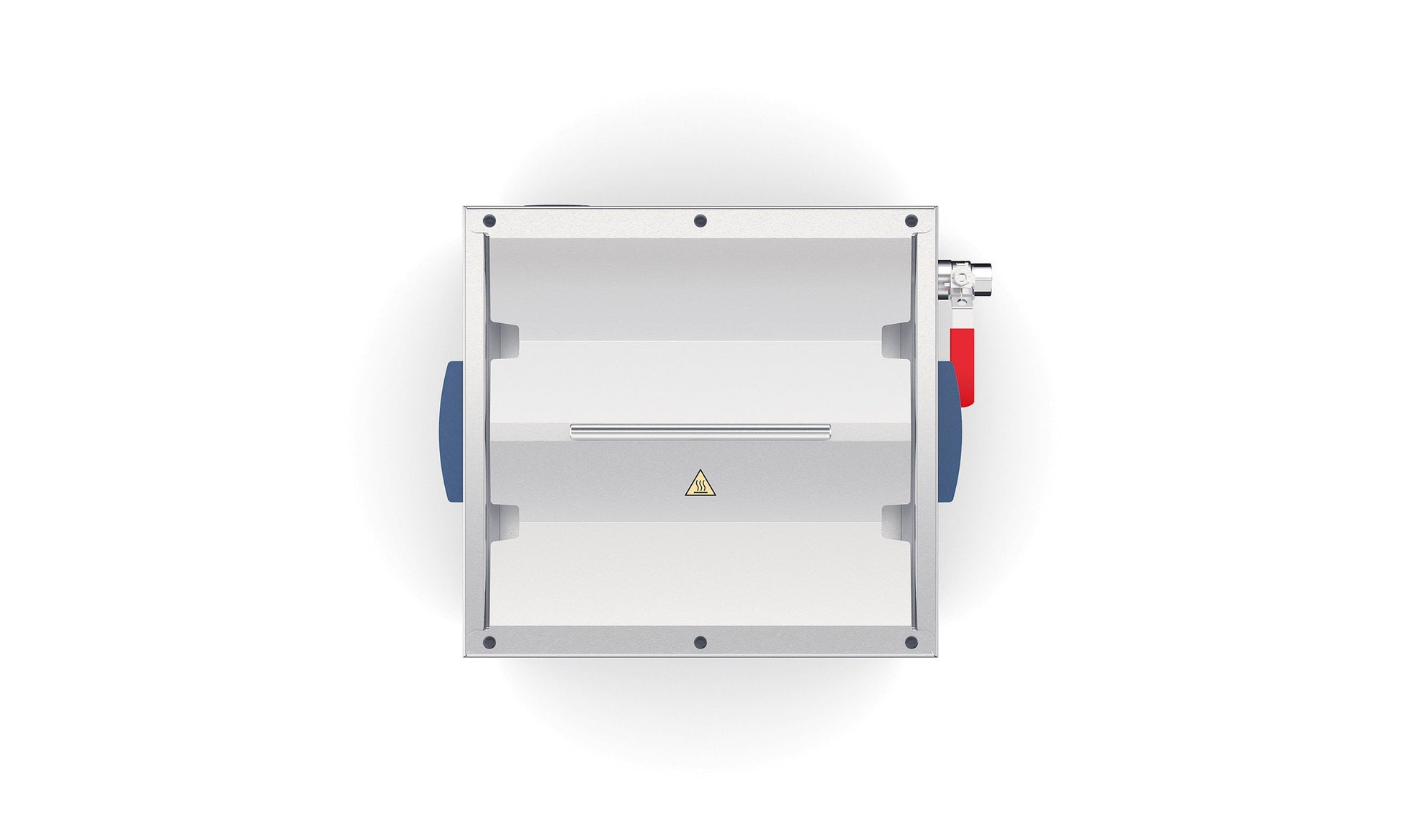

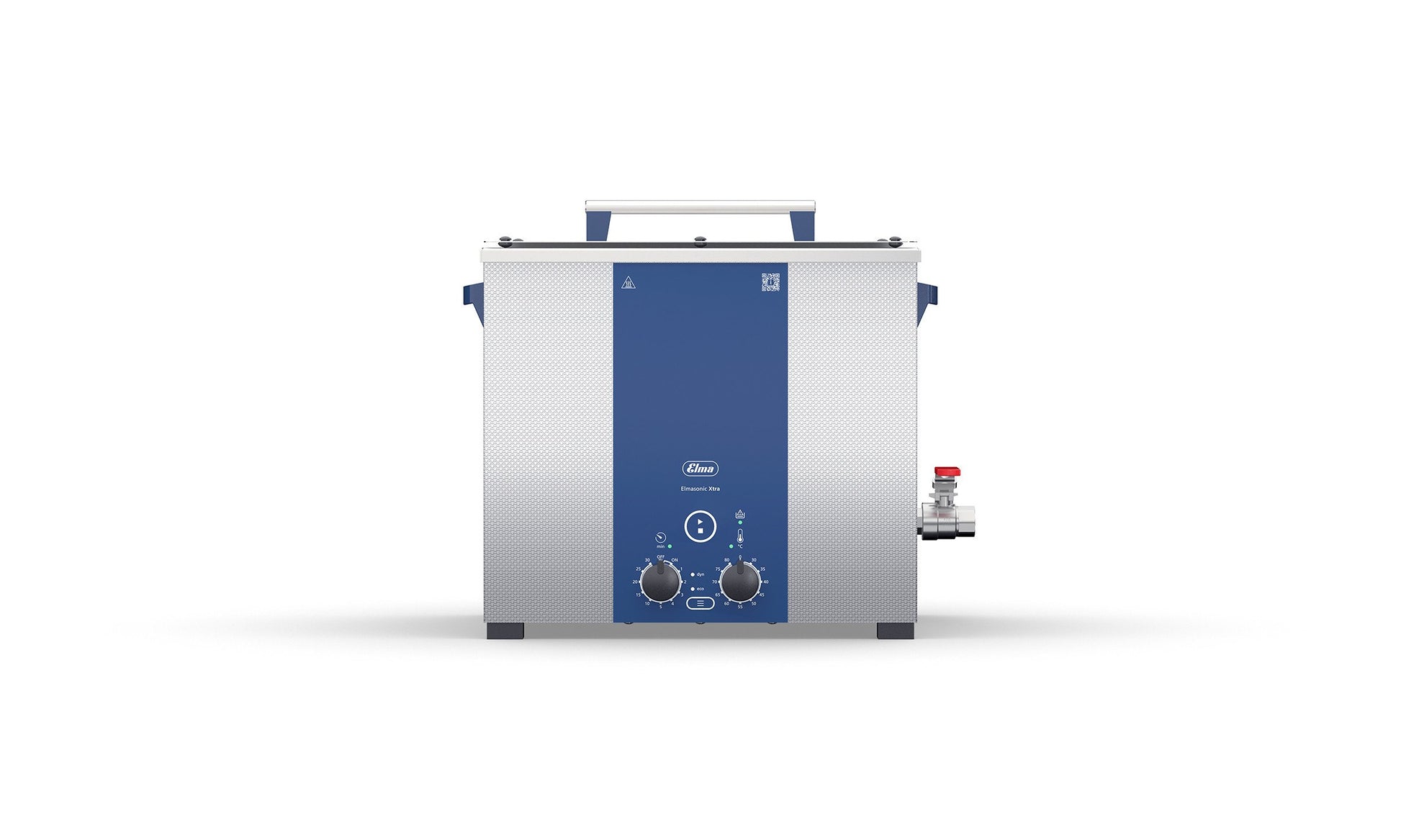

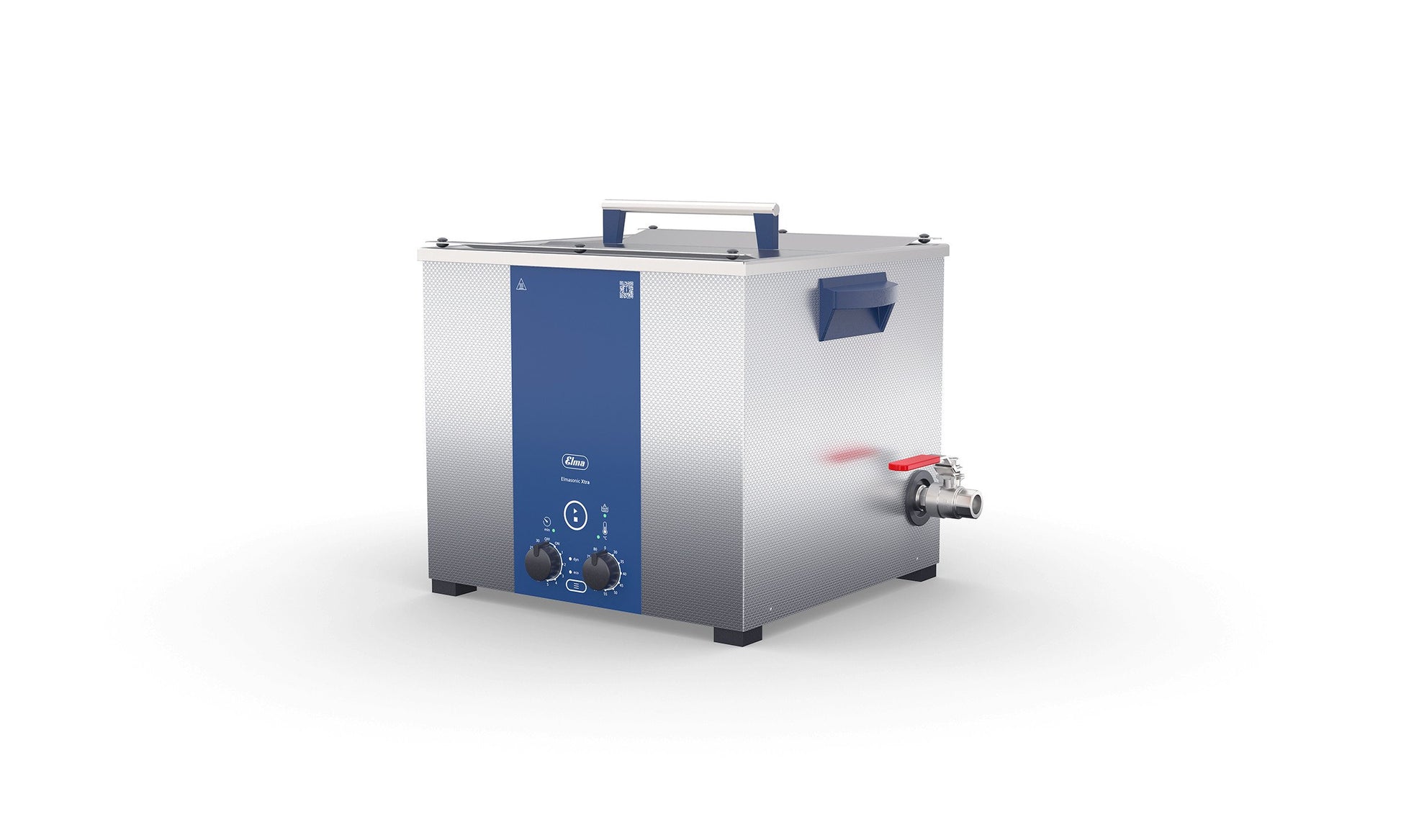

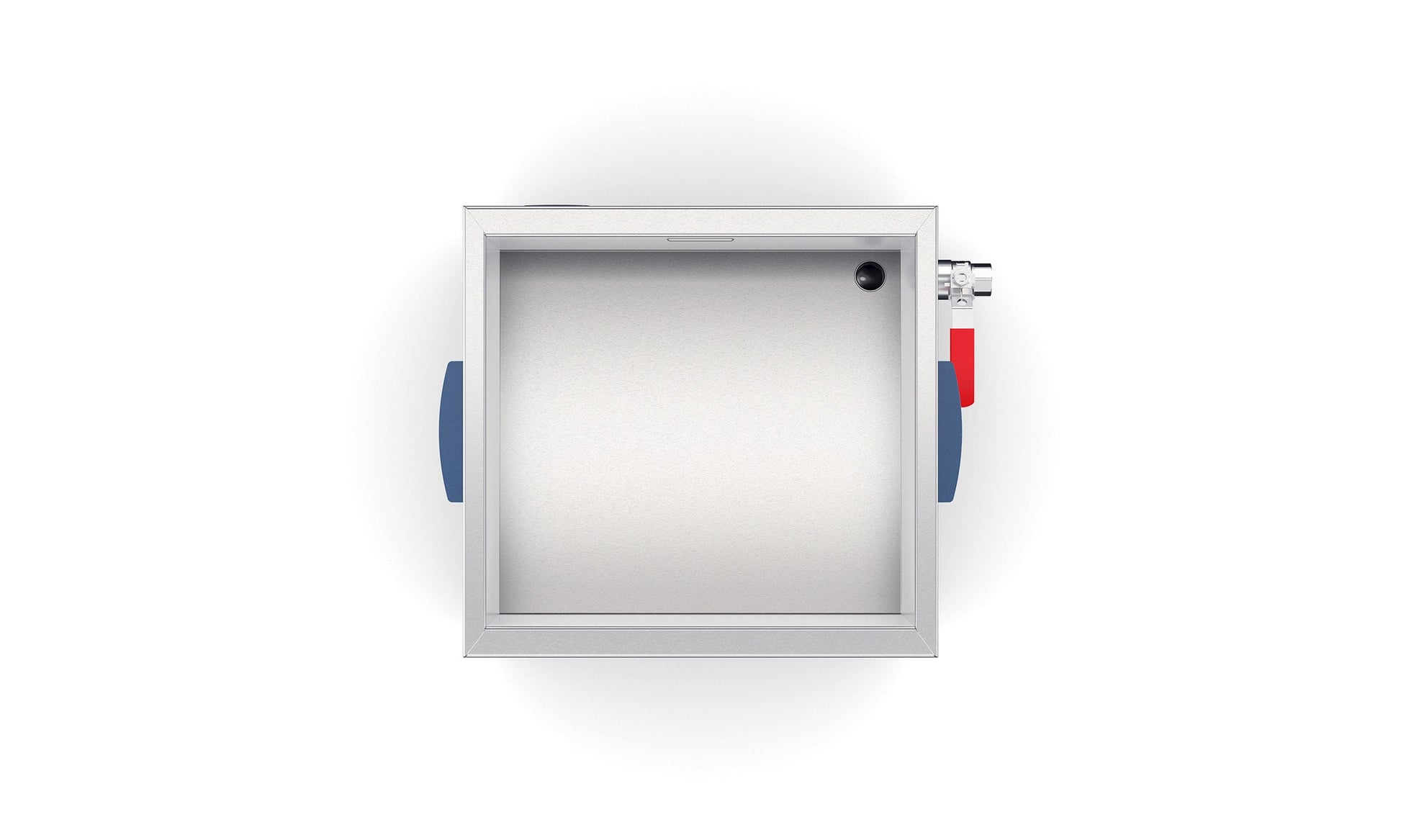

16L production benchtop ultrasonic tank ELMASONIC XTRA 180

The Elmasonic Xtra ultrasonic cleaning units are specially designed for applications in production, workshop and after-sales service environments. Offering optimal control of cleaning functions and parameters, such as time and heating preselection, these units are equipped with an ergonomic control panel at the front, allowing easy and quick monitoring. Dynamic mode, offering ideal ultrasonic distribution in the water bath, ensures impeccable cleaning results, even with the most stubborn dirt. For light tasks, the energy-efficient Eco mode is the ideal solution. LED indicators clearly show the unit's status, for example, when a cleaning cycle is complete. In terms of safety, dry-run protection plays a crucial role, automatically stopping the unit when the water level in the bath is too low, thus preventing tank damage.

Features of the Elmasonic XTRA 180

• 37 kHz Ultrasonic frequency (adjustment range -2.5 / +5.5 kHz).
• 2 ultrasonic modes for sound field distribution in the ultrasonic bath according to needs.
• dynamic mode, automatically set: Enables more intensive cleaning with higher cleaning power. Alternating sweep and pulsation for homogeneous and powerful cleaning.
• eco mode, activatable: for gentle cleaning with quieter operation. Saves energy and increases tank service life.
• Electronic selector on wipeable membrane keypad and LED display of all operating states.
• Cleaning time preselection: cleaning time adjustable between 1 minute and 30 minutes or adjustable continuous mode (ultrasonic continuous mode max. 6 hours)
• Audible and visual signal at the end of cleaning.
• Temperature control in 5°C increments adjustable from 30 to 80°C for units with heating (temperature tolerance -5 / +8°C).
• Safety shutdown with Wake Up function.
• after an 8-hour interruption of use.
• in case of brief power supply interruption.
• Automatic shutdown of ultrasonic operation when bath temperature is> 90°C.
• Stainless steel housing and cleaning tank protected against water splashes.
• Stainless steel liquid drain on the side of the unit.
• Dry-run detection.
• Stainless steel cleaning tank, surface treatment for longer service life.
• Sloped tank bottom for easy drainage of cleaning liquid.
• 2-year warranty from first commissioning, but maximum 3 years from production date.

** Acoustic level measured with basket and lid at a distance of one meter.

This unit is supplied with:

• Stainless steel lid
• User manual
• 2m power cable
• Without basket

Optional accessories:

• Stainless steel basket
• Lid with sealed opening ø 90mm or ø 76mm
• Cleaning beaker with lid 600ml, ø 90mm
• Cleaning beaker with lid 1000ml, ø 90mm
• Sound protection enclosure
