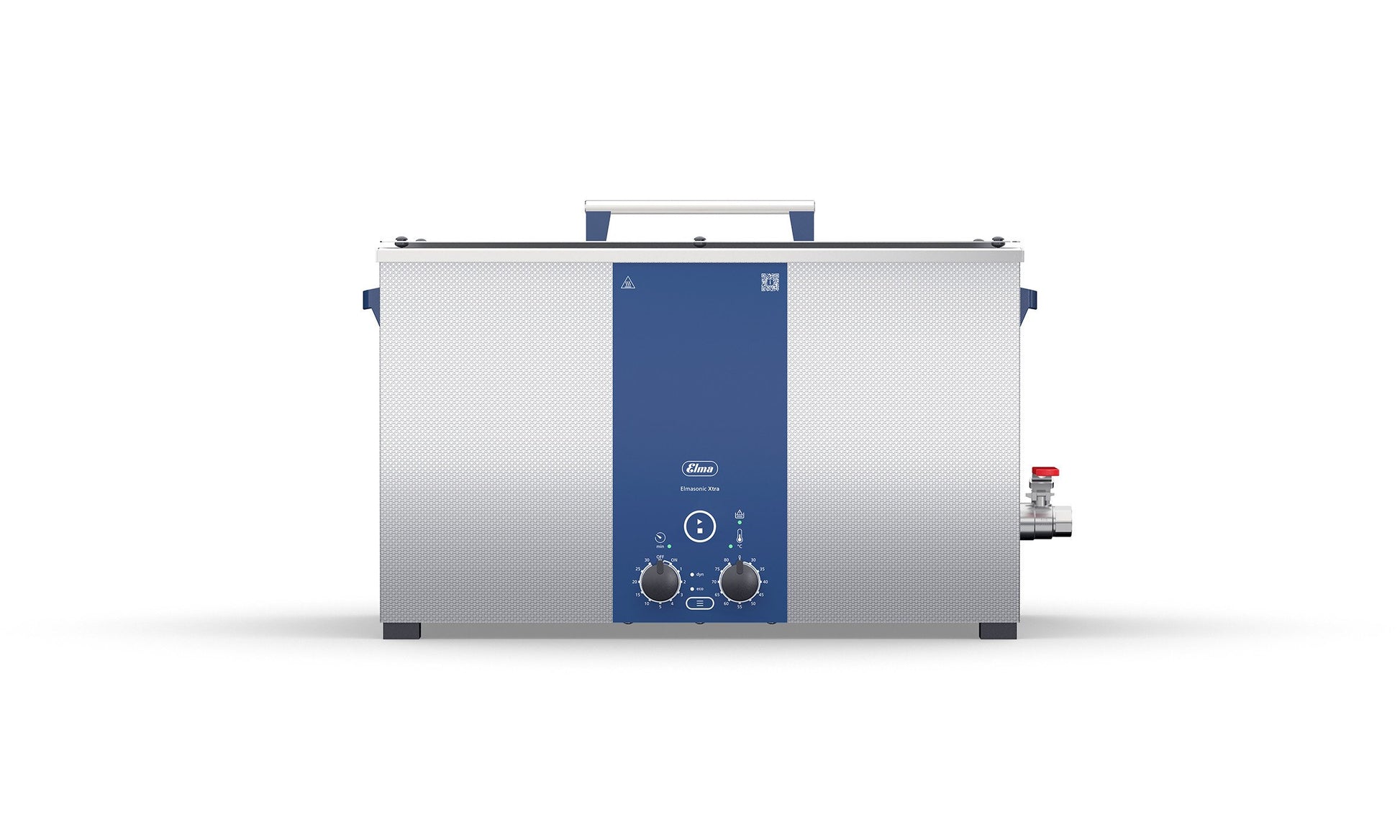

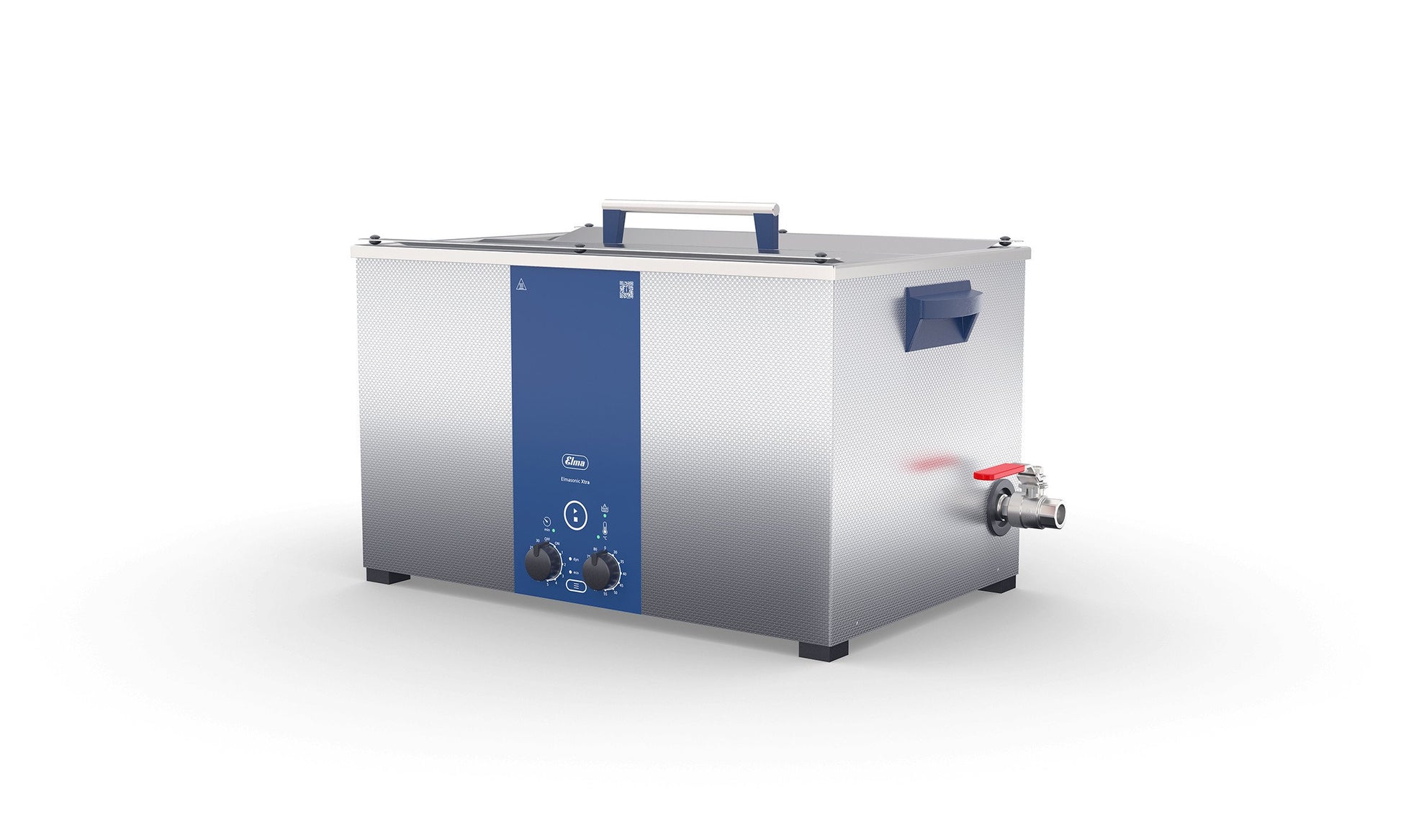

25L Benchtop Production Ultrasonic Tank ELMASONIC XTRA 300

The Elmasonic Xtra ultrasonic cleaning devices are specially designed for applications in production, workshop and after-sales service environments. Offering optimal control of cleaning functions and parameters, such as timer and heating pre-selection, these devices feature an ergonomic front control panel for easy and rapid monitoring. Dynamic mode, providing ideal ultrasonic distribution in the water bath, ensures impeccable cleaning results, even against the most stubborn soiling. For lighter tasks, the energy-saving Eco mode is the ideal solution. LED indicators clearly show the device status, for example when a cleaning cycle is complete. In terms of safety, dry-run protection plays a crucial role, automatically switching off the device when the water level in the bath is too low, thereby preventing damage to the tank.

Features of the Elmasonic XTRA 300

• 37 kHz Ultrasonic frequency (adjustment range -2.5 / +5.5 kHz).
• 2 ultrasonic modes for distribution of the sound field in the ultrasonic bath according to needs.
• Dynamic mode, automatically set: Enables more intensive cleaning with higher cleaning power. Alternating sweep and pulse for uniform and powerful cleaning.
• Eco mode, activatable: for gentle cleaning with quieter operation. Saves energy and extends the service life of the tank.
• Electronic selector on erasable membrane keypad with LED display of all operating states.
• Cleaning time pre-selection: adjustable cleaning duration between 1 minute and 30 minutes or adjustable continuous mode (continuous ultrasonic mode max. 6 hours)
• Audible and visual signal at the end of cleaning.
• Temperature regulation in 5 °C increments, adjustable from 30 to 80 °C for devices with heating (temperature tolerance -5 / +8 °C).
• Safety shutdown with Wake Up function.
• after an 8-hour interruption in use.
• in the event of a brief interruption in voltage supply.
• Automatic shutdown of ultrasonic operation when bath temperature is> 90 °C.
• Housing and cleaning tank in stainless steel, protected against water splashes.
• Stainless steel liquid drain on the side of the device.
• Dry-run detection.
• Stainless steel cleaning tank, surface treatment for a longer service life.
• Inclined tank bottom to facilitate drainage of cleaning liquid.
• 2-year warranty from first commissioning, but maximum 3 years from production date.

** Acoustic level measured with basket and lid at a distance of one metre.

This device is supplied with:

• Stainless steel lid
• User manual
• 2m power cable
• Without basket

Optional accessories:

• Stainless steel basket
• Lid with sealed aperture ø 90mm or ø 76mm
• Cleaning jar with lid 600ml, ø 90mm
• Cleaning jar with lid 1000ml, ø 90mm
• Sound protection enclosure
