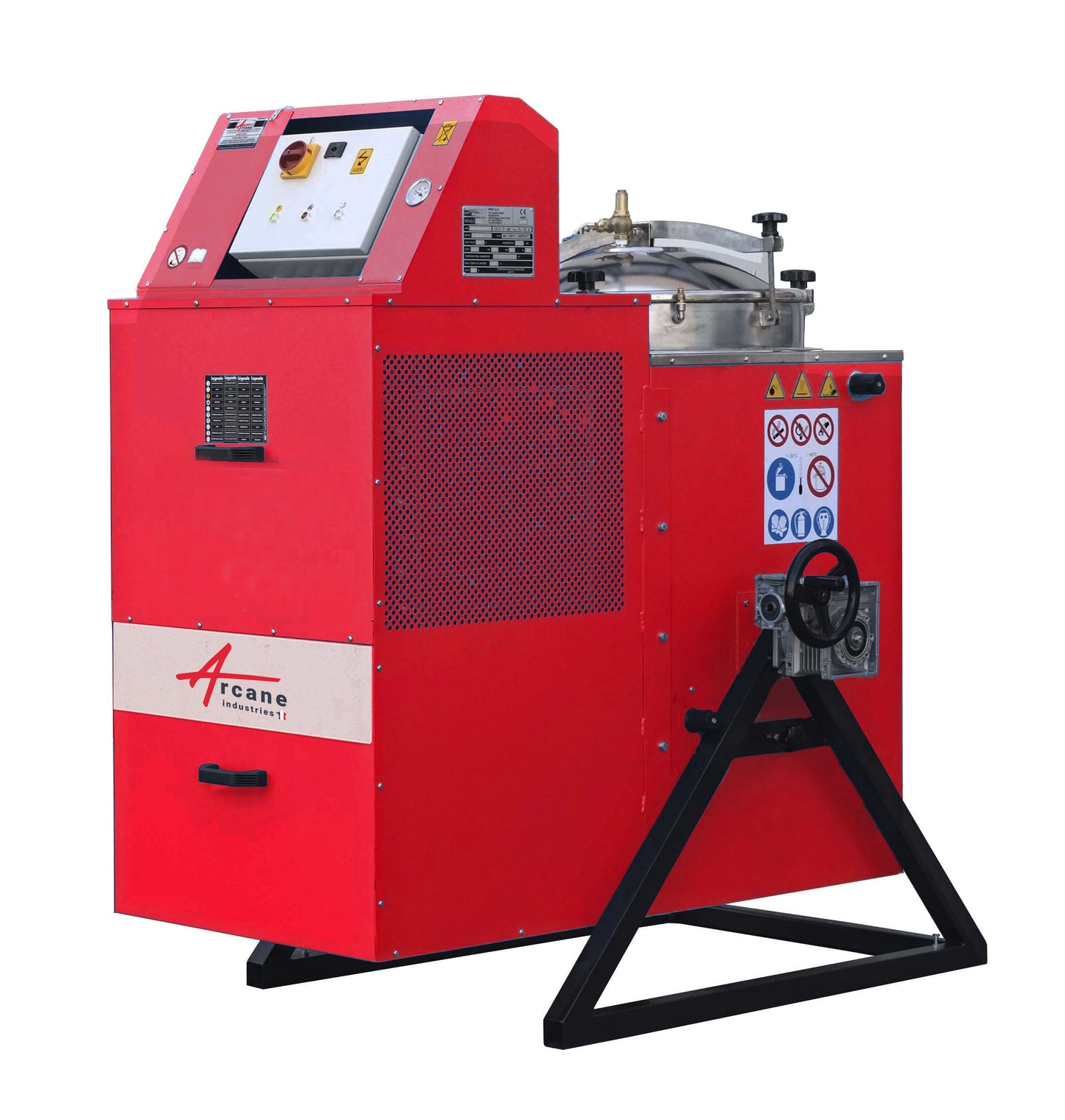

SOLVENT RECYCLER - REGENERATOR - INDUSTRIAL RECYCLING 200L
PRINCIPLE
The solvent recycler recovers reusable solvent from used, contaminated solvent. This process uses distillation and can be repeated several times.
The solvent to be treated boils in a stainless steel tank immersed in a heat-transfer oil bath heated by electric elements.
At its boiling point, the solvent vapor flows to a condenser, where it is cooled by air OR water. The condensed solvent is then recovered for reuse in the production cycle.
SPECIFICATIONS
The IA series recyclers are designed with a stainless steel tank and lid, which promotes fast and safe distillation. The use of heat-resistant bags allows the operator to never be in direct contact with the solvents and/or residues.
This special bag withstands high temperatures (up to 180°C) and chemical attacks from solvents. The use of this bag keeps the bottom of the tank free of waste. It also saves time on tank cleaning. Furthermore, while preventing damage to the bottom of the tank, it offers better thermal conductivity. The bags and their waste must be reprocessed in accordance with current legislation. This results in a very significant reduction in waste reprocessing costs and significant savings on solvent purchases (approximately 3,000 liters per year with an Alpha 30).
The electrical system of these recyclers can be offered for use in ATEX Zone 2 (ATEX EX II 3G) or for installation in Zone 1 (ATEX EX II 2G). They are therefore usable in potentially explosive atmospheres.
ALPHA recyclers are recognized and can be used safely as they are designed and manufactured in compliance with applicable CE and ATEX standards. Each recycler is factory-tested before being shipped to our customers.
CONFIGURATIONS
| COMPONENTS | IA 200 |
|
Electrical installation per |
OK |
| Heating element | 1 |
|
Metal frame with tank |
OK |
| Tiltable support | OK |
|
Electric motor with |
OK |
| Heating element immersed in diathermic oil |
OK |
| Electromechanical wiring with control temperature and cycle time |
OK |
| Safety device limiting the temperature of diathermic oil |
OK |
| Safety device limiting the temperature of the contaminated product |
OK |
| Safety device limiting the temperature of the motor-fan |
OK |
| Copper condenser for cooling vapors |
OK |
| Stainless steel condenser: for cooling of chlorinated solvent vapors (in place and in place of the copper condenser) |
Option |
| Bag retention system in the tank | OK |
| Heat-resistant bags | OK |
| Diathermic oil | OK |
OPTIONS
? Heat-resistant bags (180°C) to facilitate the extraction of distillation residues by preventing them from sticking to the bottom of the tank. Available in packs of 50 and 100 pieces
? GVS: All recyclers can be equipped with a vacuum generator to reduce the distillation temperature. It is used in cases where:
a. The solvents to be distilled have their distillation temperature close to their decomposition temperature, as is the case for many chlorinated solvents
b. Solvents have distillation temperatures between 160 to 210°
? VG: Automatic vacuum system acting during the different phases of the recycling process
? Post-Condenser: Water cooling system required for the condensation of products with low boiling points at ambient temperatures of 35-40°.
? Waste extractor: required for the extraction of solid residues from the bottom of the tank. In cases where residues adhere, it can be used together with the heat-resistant bags.
TECHNICAL CHARACTERISTICS
| COMPONENTS | IA 200 |
| Tank capacity - volume max - L |
200 |
| Productivity liters / hour | 50 |
| Average cycle duration Solvent Distillation - Hours |
4.5 |
| Average cycle duration Water Distillation - hours |
10-12 |
| Power - kW | 12 |
| Ampere - A | 20 |
| Diathermic oil qty - L | 45.5 |
| Maximum temperature of use - °C |
180 |
| Voltage - V | 400 |
| Protection | IP 56-65 |
| Cooling | Air (*) |
| Condenser type | Copper (**) |
| Dimensions - cm | 158 x 106 x 210 |
| Weight - Kg | 325 |
(*): Water cooling available as an option
(**): Stainless steel condenser available as an option
