REF : HOOD CABIN 110HP (Ref: P300028.2)

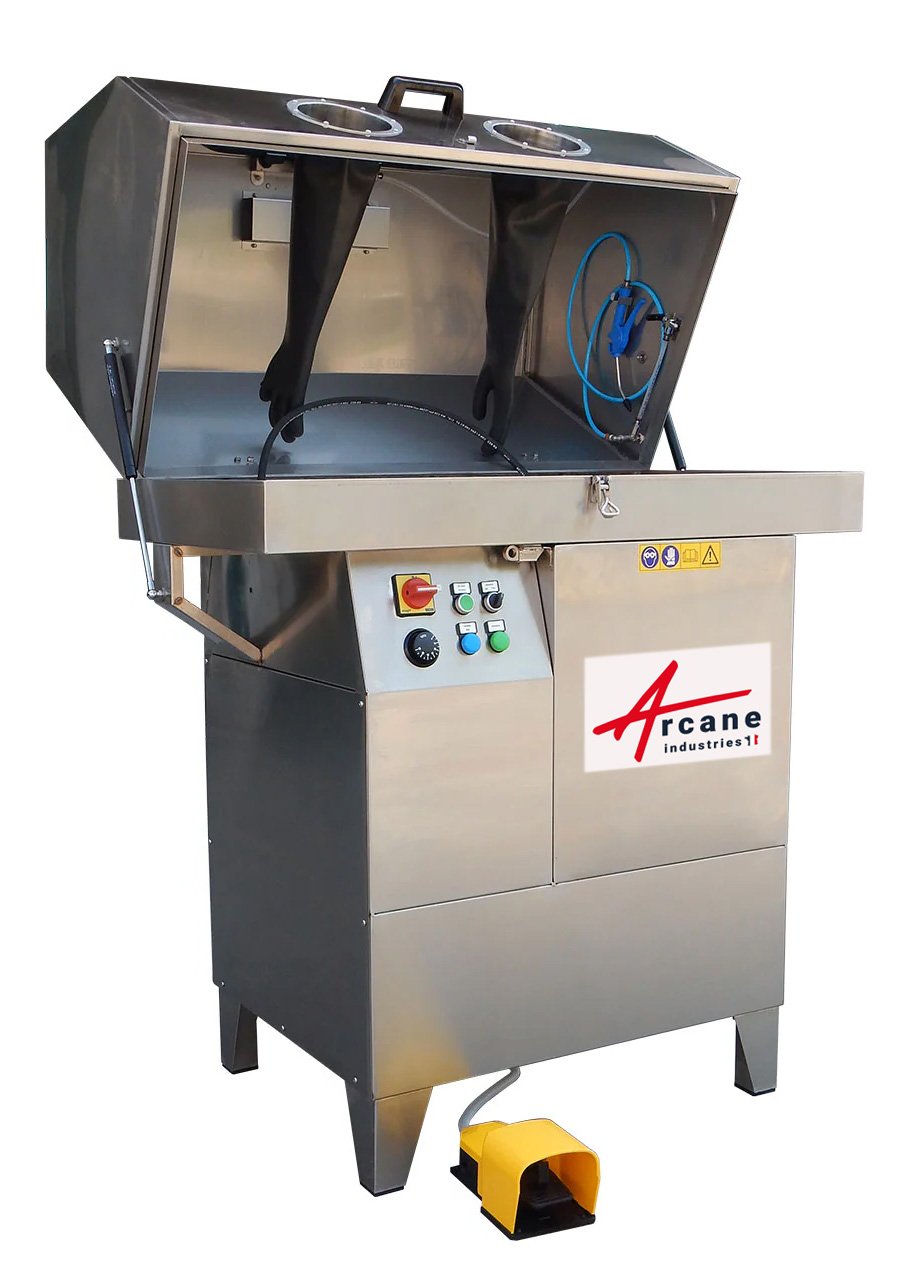

LARGE 40-BAR HIGH-PRESSURE DEGREASING CABINET 1100X600X450 mm
DESIGN
- 100% stainless steel – For heavy-duty use
-
AISI 304 stainless steel structure, corrosion-resistant, durable over time.
-
Reduced consumables and limited degreasing solution consumption thanks to an optimized system.
PERFORMANCE
-
40-bar high-pressure washing for optimal results.
-
Effectively eliminates grease, oils, chips, and particles.
APPLICATIONS
-
Suitable for mechanical parts of all sizes: bulky components or precision work.
-
Ideal for automotive, aerospace, mechanical engineering, metal fabrication, etc.
TECHNICAL SPECIFICATIONS
| Technical data | HOOD CABINET 110HP |
| External dimensions closed | 1100 x 600 x 1680 mm |
| External dimensions open | 1100 x 1000 x 1720 mm |
| Washing capacity | 1050 x 540 x 450 mm |
| Payload | 50 kg |
| Tank capacity | 100 L |
| Washing pump | 1.2kW - 20l/min - |
| Heating power | 2 kW |
| Power supply | 230V 1PH 50Hz 8.6A |
| Temperature | 0° to 60° |
| Packaging dimensions | 1200 x 800 x 1700mm 115kg |
EQUIPMENT
- High-pressure wash lance
- Integrated temperature-controlled heating tank
- 304 Stainless Steel Machine
- Fold-down door with integrated gloves and window
- Pump suction filter
- Foot-pedal pump control
- LED-lit cleaning cabinet
- Compressed air blow gun for drying
ADVANTAGES
-
Productivity gain: ergonomic workstation for fast washing and drying of parts.
-
Enhanced durability: stainless steel materials, reduced maintenance, increased lifespan.
-
Versatility: coverage for numerous applications and industrial sectors.
-
Consistent quality: uniform cleanliness, reduced scrap, and cost optimization.
AREAS OF APPLICATION
-
Mechanical and industrial maintenance workshops
-
Automotive, aerospace, marine, and metallurgy sectors
-
Machining of greasy or oily parts requiring regular cleaning
OUR COMMITMENT
We provide durable equipment that complies with industrial standards, promoting energy efficiency and the optimization of production processes.
Contact us for a custom quote: we adapt each solution to your specific needs.
LEAD TIME
Lead time 6 to 12 weeks.
