REF : 80HP HOOD CABIN

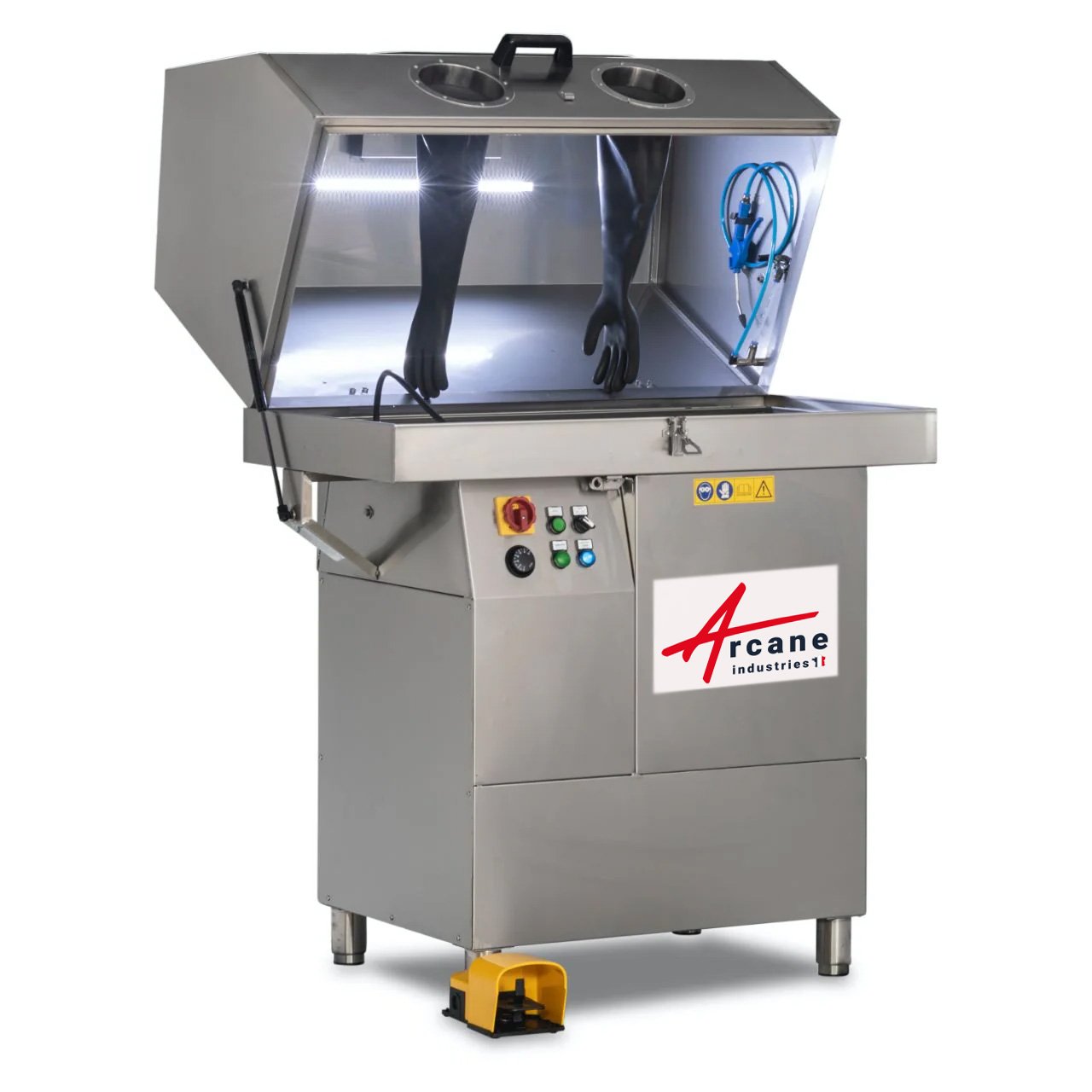

HIGH-PRESSURE DEGREASING CABIN 40 BAR 800X600X450 mm
DESIGN
- 100% stainless steel – For intensive use
-
AISI 304 stainless steel structure, corrosion-resistant, long-lasting durability.
-
Reduction of consumables and limited consumption of degreasing solution thanks to an optimized system.
PERFORMANCE
- High-pressure washing at 40 bar for optimal results.
-
Effectively removes grease, oils, chips and particles.
APPLICATIONS
-
Suitable for mechanical parts of any size: bulky components or precision work.
-
Ideal for automotive, aeronautics, mechanical engineering, boilermaking, etc.
TECHNICAL SPECIFICATIONS
| Technical data | CABIN HOOD 80HP |
| Closed external dimensions | 800 x 600 x 1660 mm |
| Open external dimensions | 800 x 1000 x 1720 mm |
| Washing capacity | 720 x 520 x 450 mm |
| Payload | 50 kg |
| Tank capacity | 100 L |
| Washing pump | 1.2kW - 20l/min - |
| Heating power | 2 kW |
| Power supply | 230V 1PH 50Hz 8.6A |
| Temperature | 0° to 60° |
| Packaging size | 1200 x 800 x 1700mm 95kg |
EQUIPMENT
- High-pressure washing lance
- Integrated thermoregulated heating tank
- Machine in 304 stainless steel
- Fold-down door with integrated sleeves and window
- Pump suction filter
- Foot-operated pump control
- LED-lit cleaning cabin
- Compressed air gun for drying
ADVANTAGES
-
Productivity gain: ergonomic station for fast washing and drying of parts.
-
Enhanced durability: stainless steel materials, reduced maintenance, increased longevity.
-
Versatility: coverage of numerous applications and industrial sectors.
-
Consistent quality: uniform cleanliness, reduction of rejects and cost optimization.
APPLICATION FIELDS
-
Mechanical workshops and industrial maintenance
-
Automotive, aeronautics, naval and metallurgy sectors
-
Machining of greased or oily parts requiring regular cleaning
OUR COMMITMENT
We provide durable equipment, compliant with industrial standards, promoting energy efficiency and optimization of production processes.
Contact us for a personalized quote: we tailor each solution to your specific needs.
