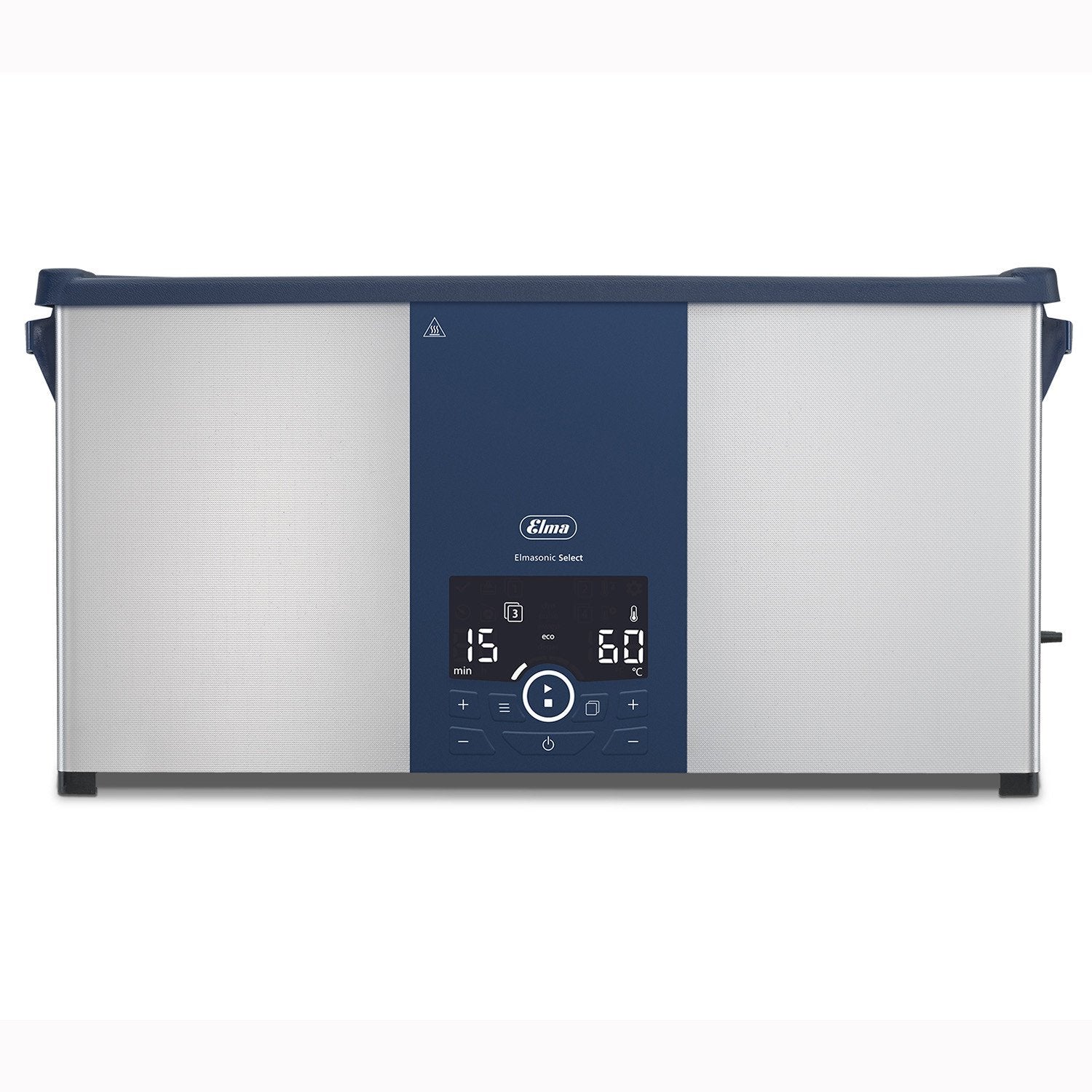

ELMASONIC SELECT 80 is equipped with a 37 kHz ultrasonic frequency, 5 ultrasonic modes, and the ability to store up to 4 cleaning programs. It is part of the Elmasonic Select range of versatile devices.
Field of application:
- Research and development laboratories
- Medical-pharmaceutical and industrial analysis laboratories
- Workshops and repair shops
- Metallurgy companies
- Industrial component manufacturers
- Watchmakers
- Jewelers
- Watchmaking and jewelry workshops
Uses:
- Laboratory instruments such as test tubes, pipettes and glass burettes
- Industrial components and parts such as carburetors, filters
- Watch components such as straps, clasps, cases
- Jewelry such as earrings, bracelets – with and without precious stones
Effective on:
- Resins
- Oils and greases
- Adhesive residues
- Lapping and polishing pastes
- Chips
- Flux
- Organic contamination such as horn and skin residues
- Wear traces
Specifications:
| Elmasonic Select | 80 |
| Total volume V (l) | 9.3 |
| Recommended working volume (l) | 6.8 |
| Ext. device dim. L/W/H (mm) | 570 / 195 / 280 |
| Opening dim. L/W (mm) | 500 / 135 |
| Int. tank dim. L/W/H (mm) | 475 / 110 / 145 |
| Weight with lid (kg) | 6.9 |
| Drain hose – int. dia. (mm) | 12.0 |
| Int. basket dim. L/W/H | 455 / 106 / 75 |
| Total basket load (kg) | 5.0 |
| Power supply | 220-240 V / 50-60 Hz |
| Total power consumption (W) | 750 |
| Effective ultrasonic power ±10% (W) | 150 |
| Max. peak ultrasonic power (W) | 600 |
| Heating power (W) | 600 |
| Temperature (°C) | 25 - 80 |
| Protection type | IP 20 |
| Sound pressure level (LpAU) | < 80 dB |
| Ultrasonic sound level | < 110 dB |
This device is supplied with:
- Lid / drip tray
- User manual
- 2m power cable
- Hose fitting, drain hose not included
- Without basket
