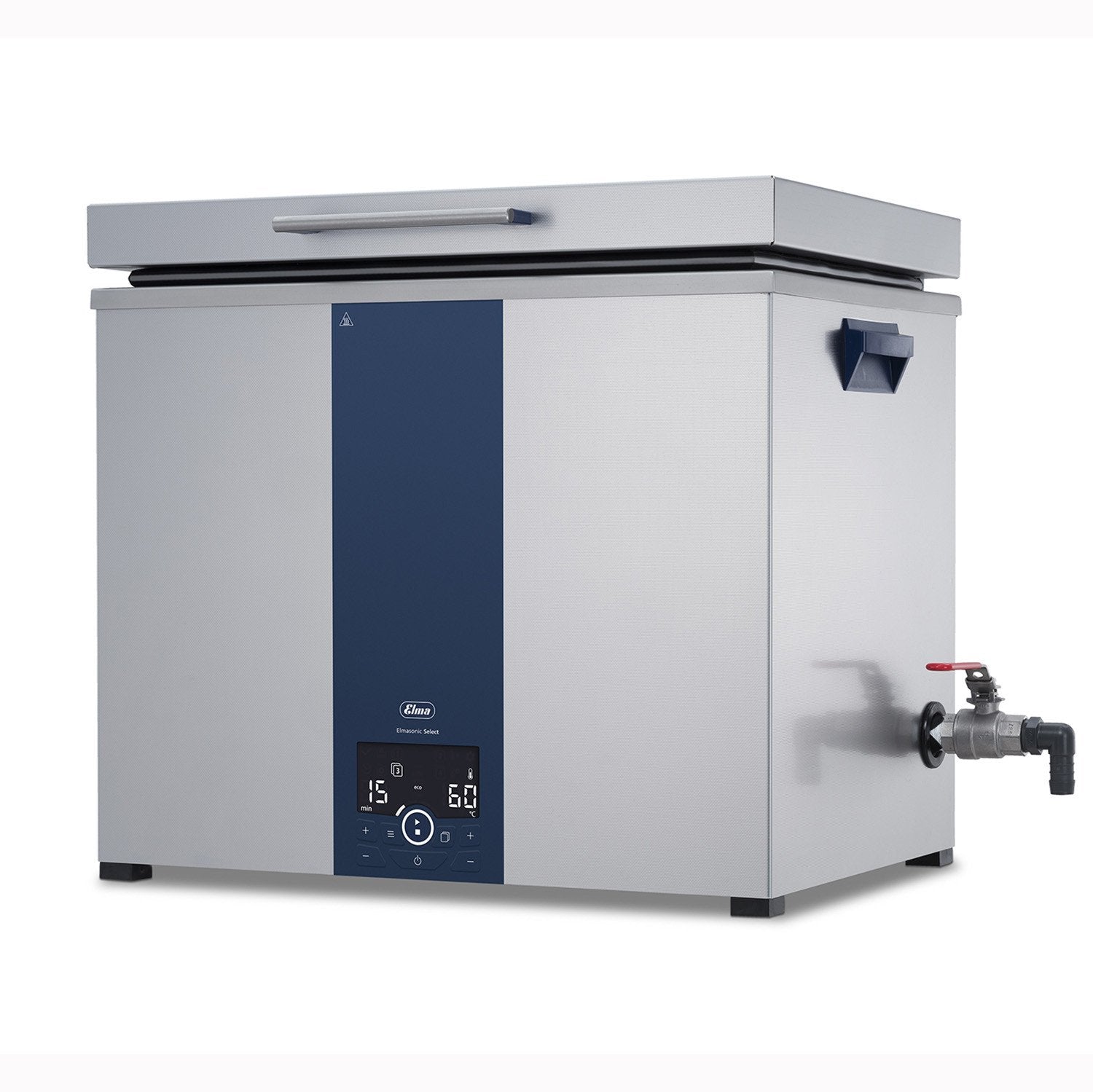

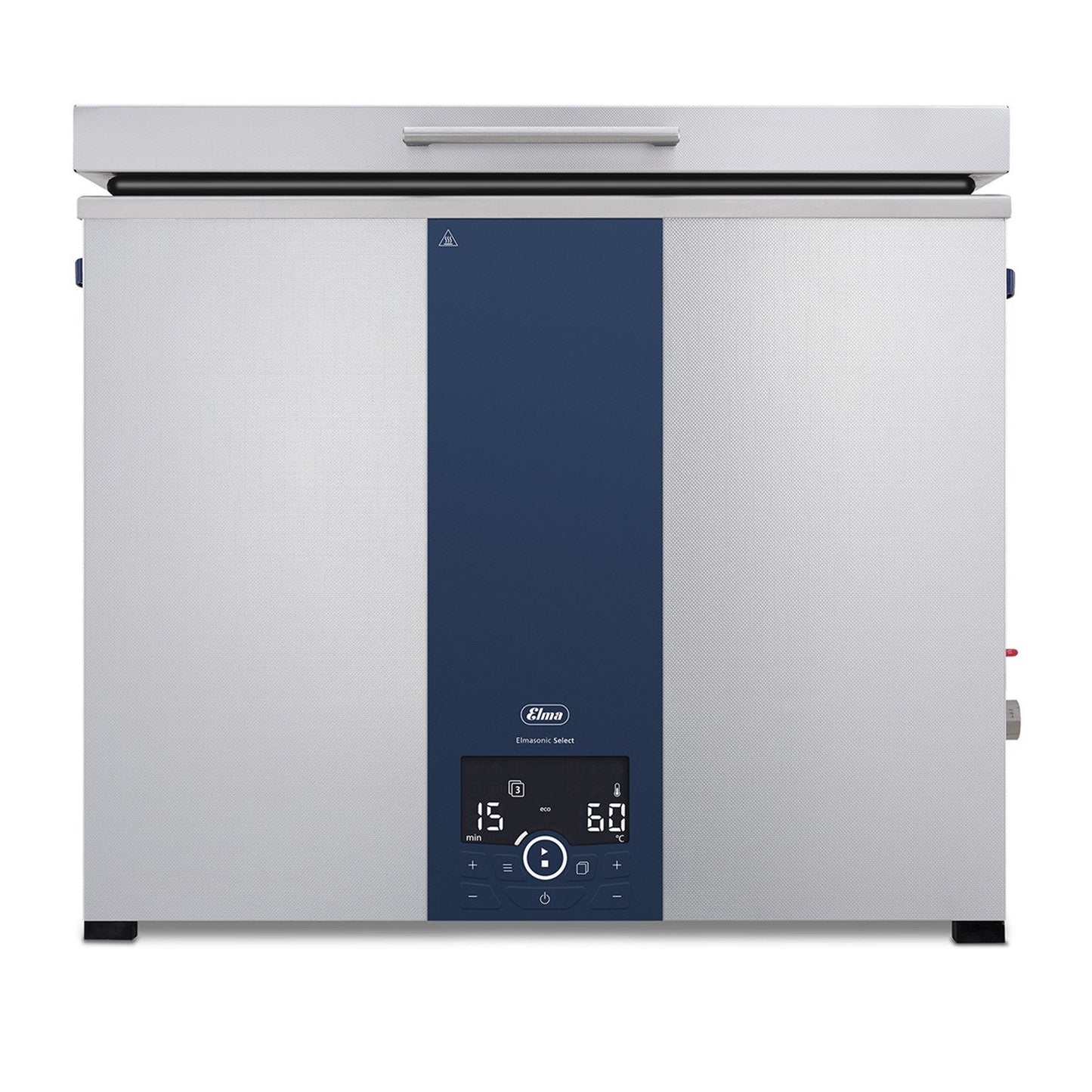

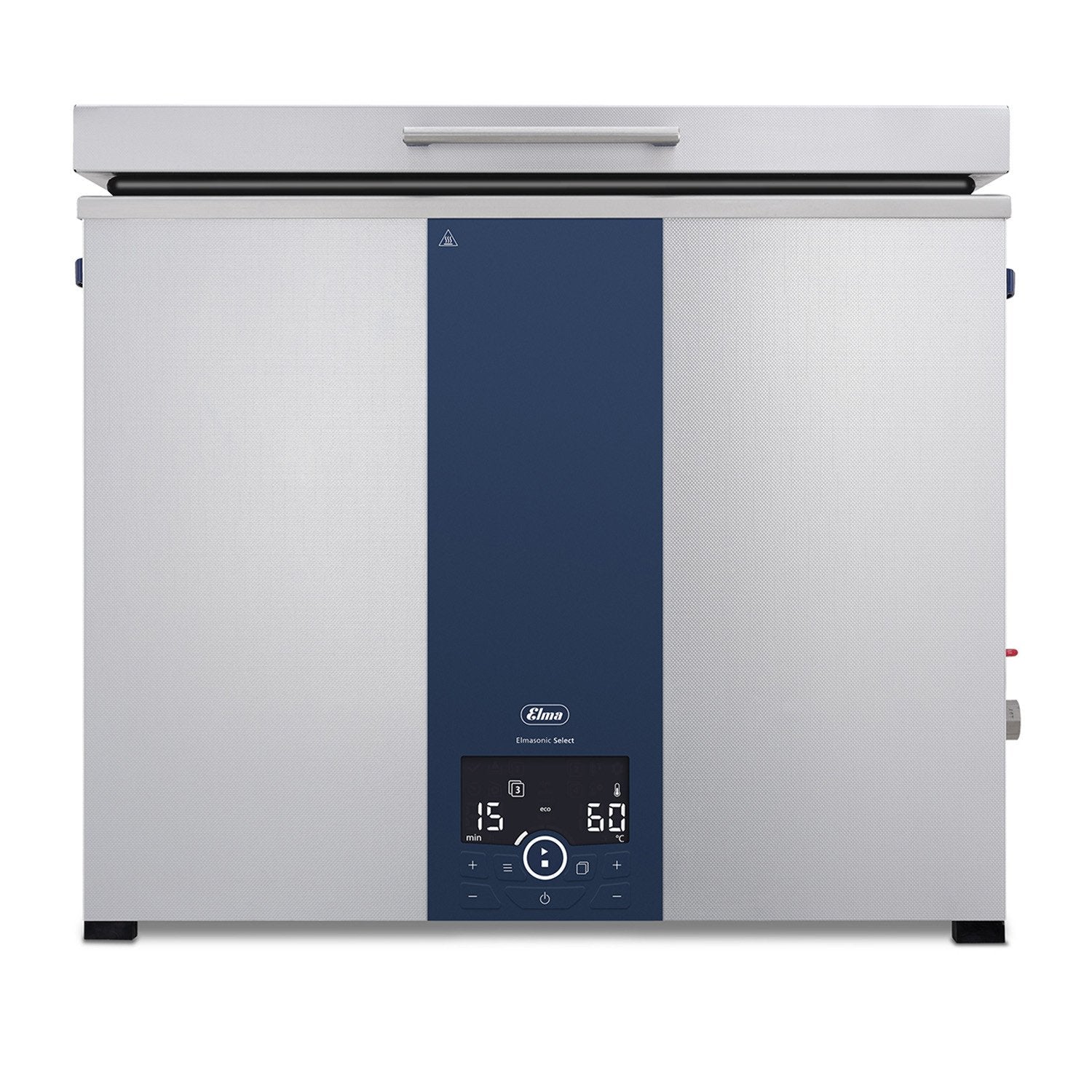

ELMASONIC SELECT 500 is equipped with an ultrasonic frequency of 37 kHz, 5 ultrasonic modes, the ability to store up to 4 cleaning programs, and is part of the Elmasonic Select range of versatile devices.
Field of application:
- Research and development laboratories
- Medical-pharmaceutical and industrial analysis laboratories
- Workshops and repair shops
- Metallurgy companies
- Industrial component manufacturers
- Watchmakers
- Jewelers
- Watchmaking and jewelry workshops
Uses:
- Laboratory instruments such as test tubes, pipettes and glass burettes
- Industrial components and parts such as carburetors, filters
- Watch components such as straps, clasps, cases
- Jewelry such as earrings, bracelets - with and without gemstones
Effective on:
- Resins
- Oils and greases
- Adhesive residues
- Sharpening and polishing pastes
- Chips
- Flow
- Organic contamination such as horn and skin residues
- Wear traces
Specifications:
| Elmasonic Select | 500 |
| Total volume V (l) | 49.7 |
| Recommended working volume (l) | 40.3 |
| External dimensions of unit L/W/H (mm) | 775 / 510 / 975 |
| Opening dimensions L/W (mm) | |
| Internal tank dimensions L/W/H (mm) | 500 / 330 / 290 |
| Weight with lid (kg) | 34.7 |
| Drain hose - int. dia. (mm) | 19.0 |
| Internal basket dimensions L/W/H | 460 / 300 / 195 |
| Total basket load (kg) | 20.0 |
| Power supply | 220-240 V / 50-60 Hz |
| Total power consumption (W) | 2140 |
| Effective ultrasonic power ±10% (W) | 540 |
| Peak ultrasonic power max. (W) | 2160 |
| Heating power (W) | 1600 |
| Temperature (°C) | 25 - 80 |
| Type of protection | IP 20 |
| Sound pressure level (LpAU) | < 80 dB |
| Ultrasonic sound level | < 110 dB |
This device is supplied with:
- Sound-insulating steel lid
- User manual
- 2m power cable

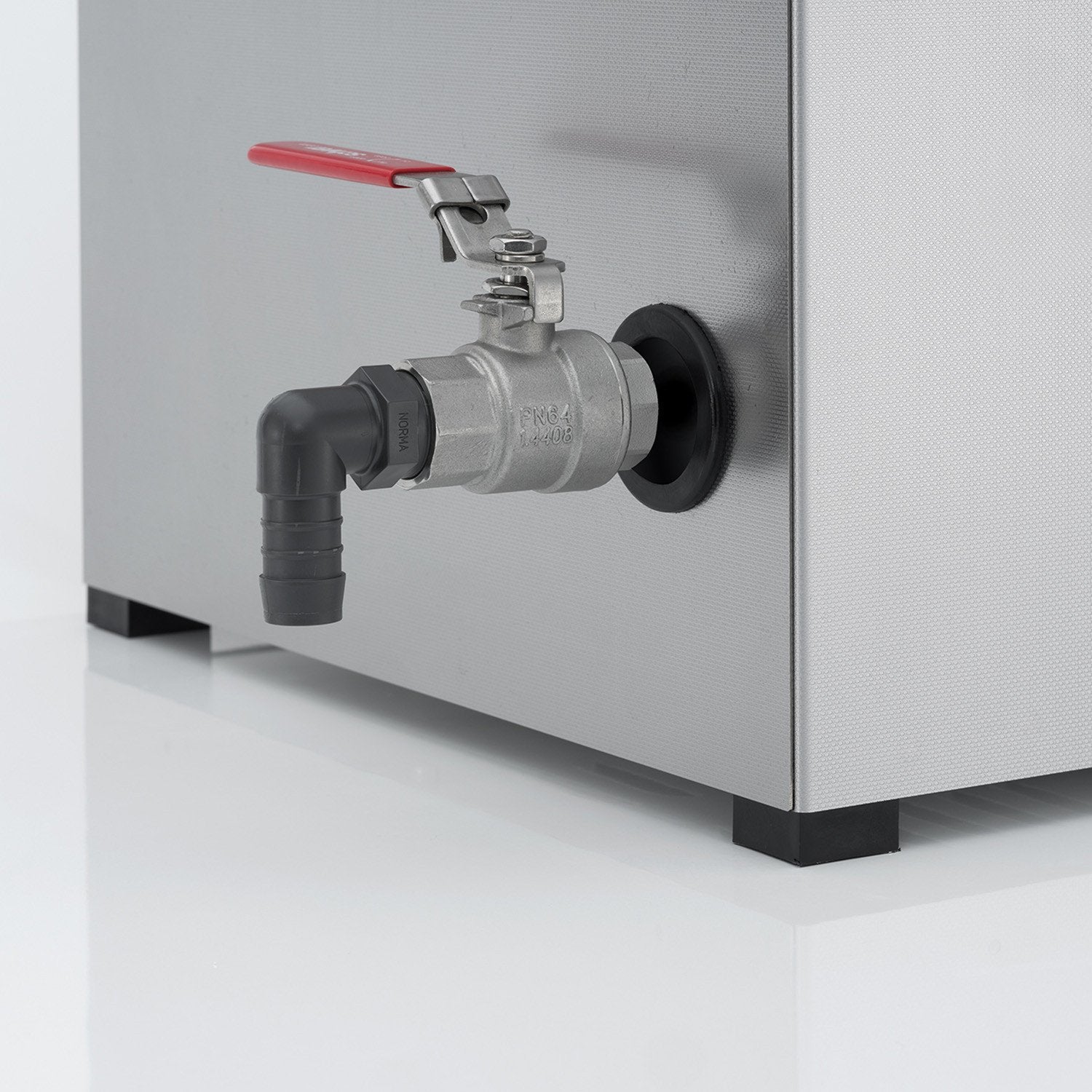

- Hose connector, drain hose not included
- Without basket
