ELMASONIC SELECT 150 is equipped with an ultrasonic frequency of 37 kHz, 5 ultrasonic modes, the ability to store up to 4 cleaning programs, and is part of the Elmasonic Select range of versatile devices.
Field of application:
- Research and development laboratories
- Medical-pharmaceutical and industrial analysis laboratories
- Workshops and repair shops
- Metallurgy companies
- Industrial component manufacturers
- Watchmakers
- Jewelers
- Watchmaking and jewelry workshops
Uses:
- Laboratory instruments such as test tubes, pipettes and glass burettes
- Industrial components and parts such as carburetors, filters
- Watch components such as straps, clasps, cases
- Jewelry such as earrings, bracelets - with and without precious stones
Effective on:
- Resins
- Oils and greases
- Adhesive residues
- Sharpening and polishing pastes
- Chips
- Flux
- Organic contamination such as horn and skin residues
- Wear marks
Characteristics:
| Elmasonic Select | 150 |
| Total volume V (l) | 14.6 |
| Recommended working volume (l) | 8.7 |
| External device dimensions L/W/H (mm) | 575 / 360 / 230 |
| Opening dimensions L/W (mm) | 500 / 395 |
| Internal tank dimensions L/W/H (mm) | 485 / 280 / 95 |
| Weight with lid (kg) | 8.8 |
| Drain hose - internal dia. (mm) | 12.0 |
| Internal basket dimensions L/W/H | 455 / 250 / 45 |
| Total basket load (kg) | 7.0 |
| Power supply | 220-240 V / 50-60 Hz |
| Total absorbed power (W) | 1100 |
| Effective ultrasonic power ±10% (W) | 300 |
| Max. peak ultrasonic power (W) | 1200 |
| Heating power (W) | 800 |
| Temperature (°C) | 25 - 80 |
| Protection type | IP 20 |
| Sound pressure level (LpAU) | < 80 dB |
| Ultrasonic sound level | < 110 dB |
This device is supplied with:
- Lid / drip tray
- User manual
- 2m power cable

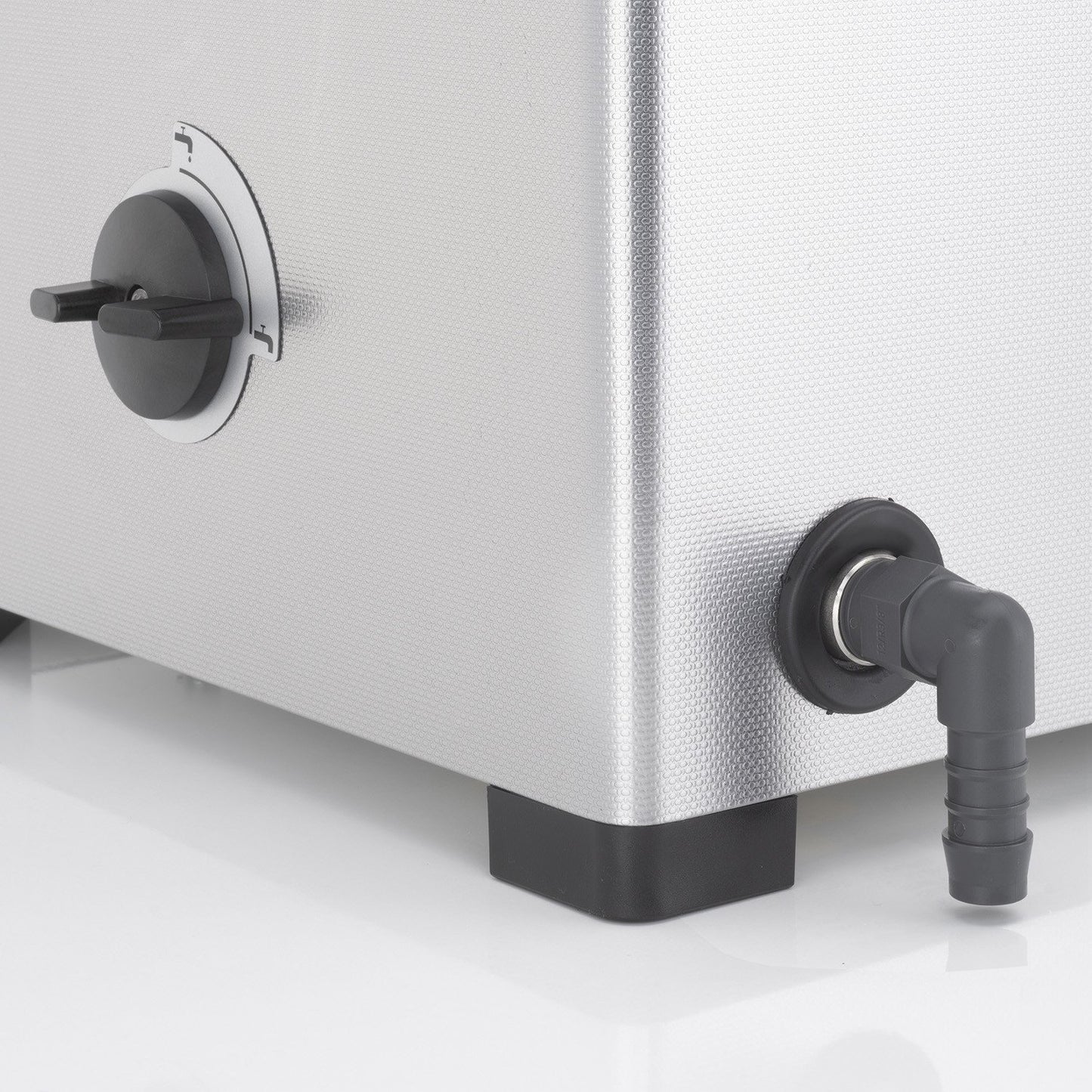

- Hose fitting, drain hose not included
- Without basket
