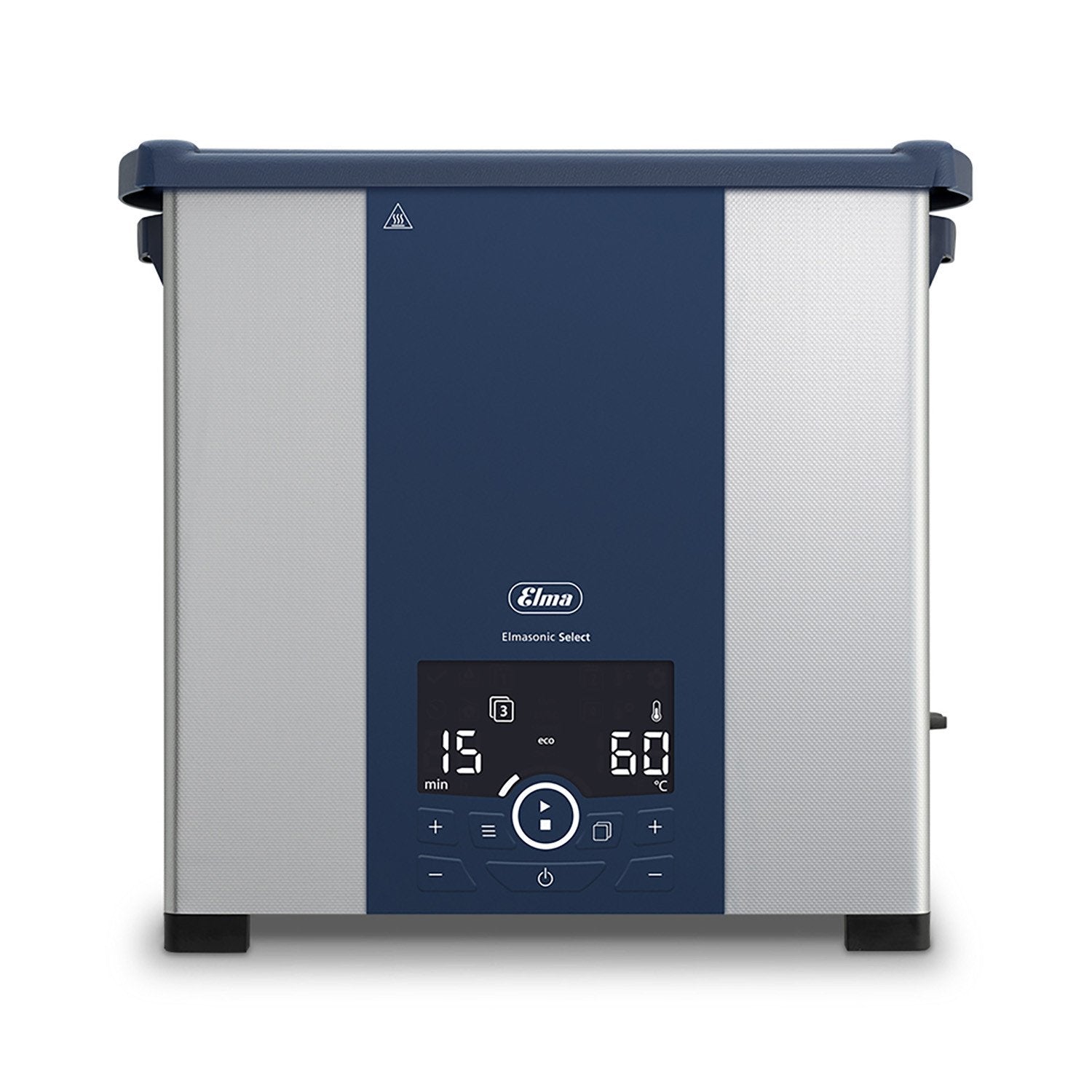

ELMASONIC SELECT 120 is equipped with an ultrasonic frequency of 37 kHz, 5 ultrasonic modes, the ability to store up to 4 cleaning programs, and is part of the versatile Elmasonic Select range of devices.
Application field:
- Research and development laboratories
- Medical-pharmaceutical and industrial analysis laboratories
- Workshops and repair shops
- Metallurgy companies
- Industrial component manufacturers
- Watchmakers
- Jewelers
- Watchmaking and jewelry workshops
Uses:
- Laboratory instruments such as test tubes, pipettes and glass burettes
- Industrial components and parts such as carburetors, filters
- Watch components such as straps, clasps, cases
- Jewelry such as earrings, bracelets - with and without precious stones
Effective on:
- Resins
- Oils and greases
- Adhesive residues
- Sharpening and polishing pastes
- Chips
- Flux
- Organic contaminations such as horn and skin residues
- Wear traces
Specifications:
| Elmasonic Select | 120 |
| Total volume V (l) | 12.9 |
| Recommended working volume (l) | 10 |
| Ext. device dimensions L/W/H (mm) | 380 / 300 / 30 |
| Opening dimensions L/W (mm) | 275 / 235 |
| Int. tank dimensions L/W/H (mm) | 300 / 215 / 195 |
| Weight with lid (kg) | 7.7 |
| Drain pipe - int. dia. (mm) | 12.0 |
| Int. basket dimensions L/W/H | 250 / 190 / 110 |
| Total basket load (kg) | 6.0 |
| Power supply | 220-240 V / 50-60 Hz |
| Total absorbed power (W) | 1000 |
| Effective ultrasonic power ±10% (W) | 200 |
| Max. peak ultrasonic power (W) | 800 |
| Heating power (W) | 800 |
| Temperature (°C) | 25 - 80 |
| Protection type | IP 20 |
| Sound pressure level (LpAU) | < 80 dB |
| Ultrasonic sound level | < 110 dB |
This device comes with:
- Lid / drip tray
- User manual
- 2m power cable

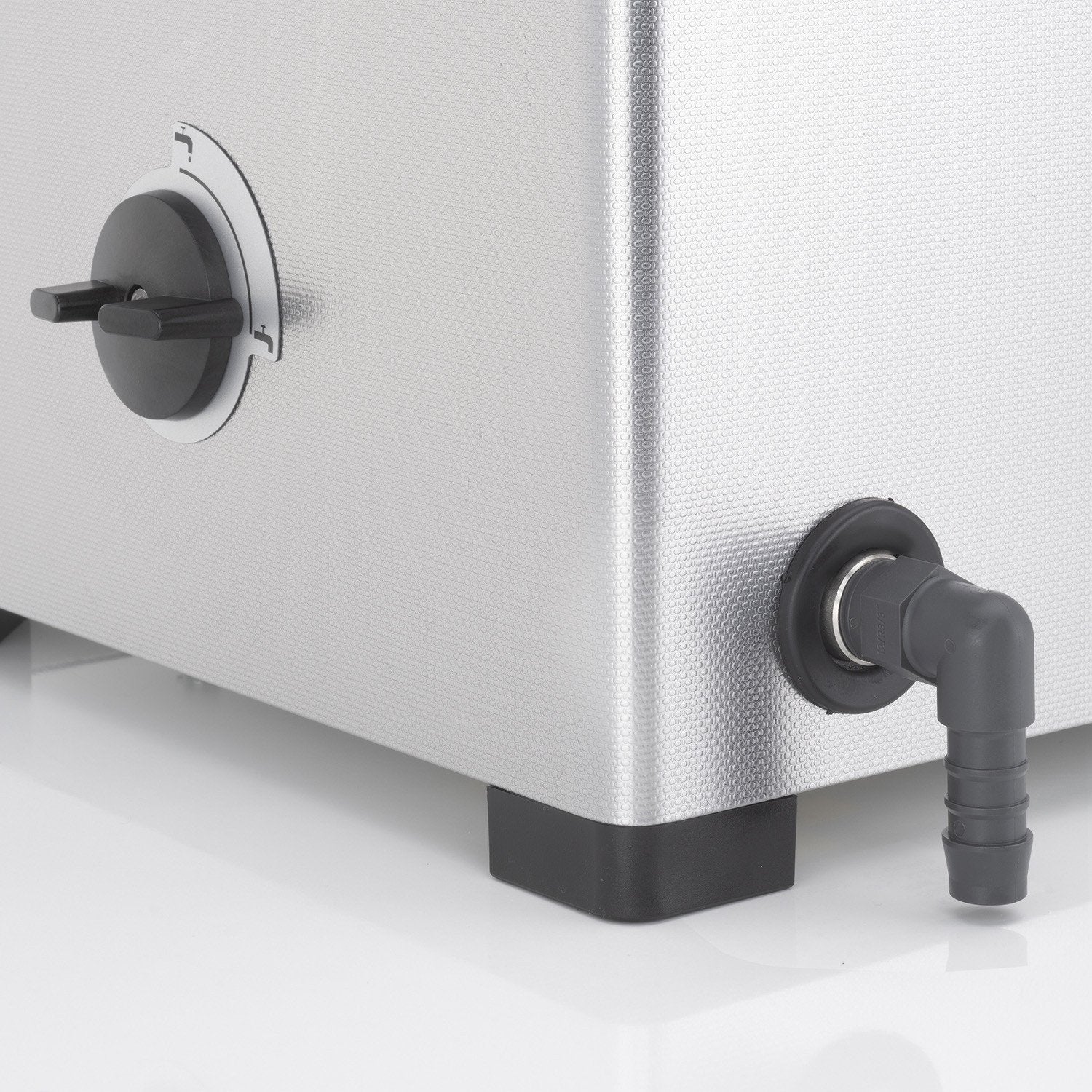

- Pipe fitting, drain pipe not included
- Without basket
