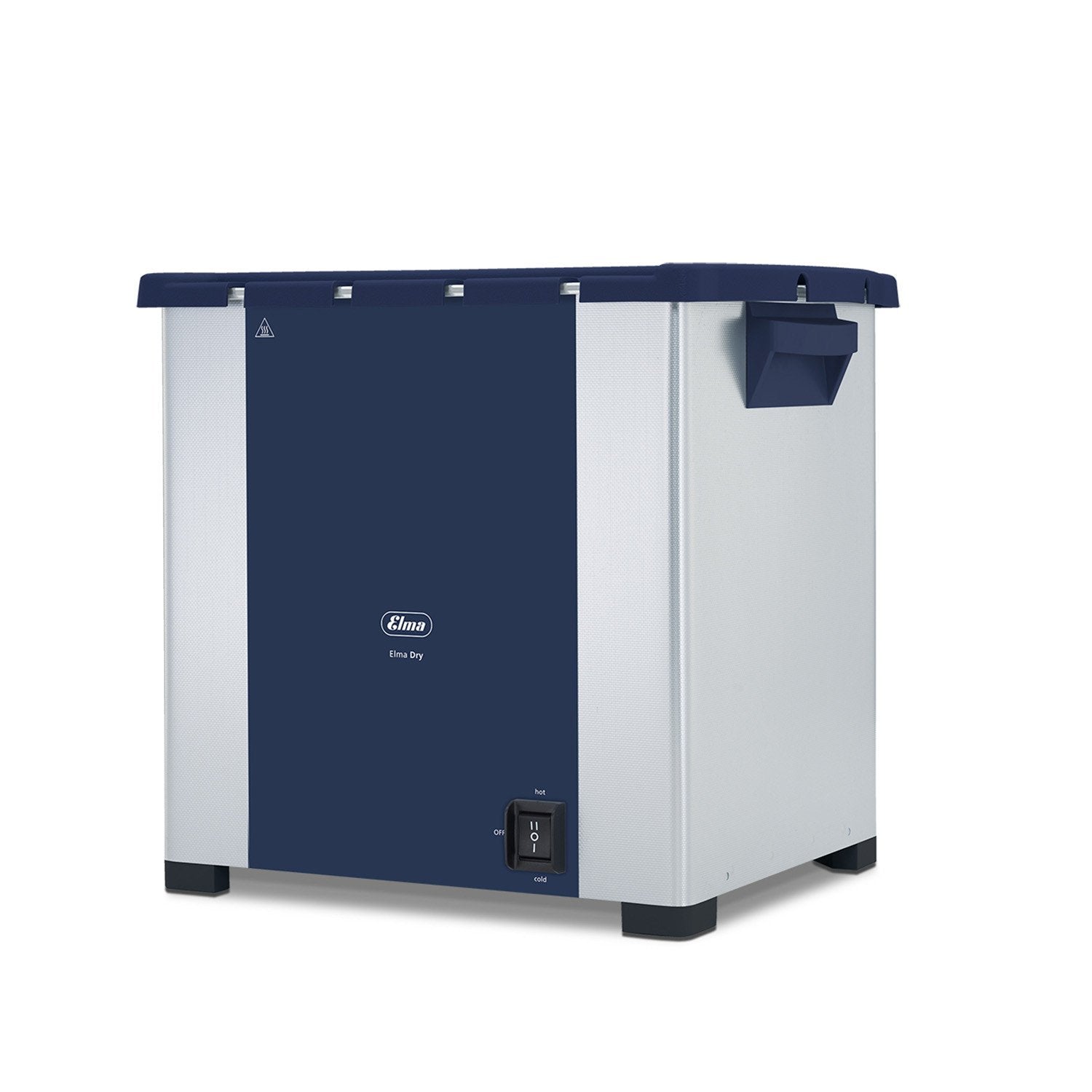

ELMA DRY 120 Drying Equipment
• Simple and fast operation with a three-position rocker switch: Off, hot air, cold air
• Max. drying temperature 70 °C
• Cooling temperature at room temperature
• Lid for energy saving and creating efficient flow turbulence around the material to be dried
• Automatic safety shut-off in case of excessive temperature
• Dust filter (interchangeable) prevents ambient air dust from re-soiling the object to be dried (filtration fineness 33ppi)
• Stainless steel housing, protected against water drops
• Very gentle air flow for sensitive parts
• Scope of delivery:
- 1x Elma Dry 120, 1x Lid,
- 1x Power cable with IEC plug (approximately 2 m long)
- 1x User manual
| Model | ELMA DRY 120 |
| External dimensions of unit L / W / H (mm) | 362 / 285 / 322 |
| Internal tank dimensions L1 / W1 / H1 (mm) | 275 / 215 / 195 |
| Opening dimensions L2 / W2 (mm) | 295 / 235 |
| Mesh dimensions Y x Z (mm) | 2 x 0.63 |
| Weight (kg) | 6,1 |
| Load capacity (kg) | 7 |
| Suitable basket sizes | |
| Elmasonic S, P, Med, Select, Easy | 2x 30/40, 1x 100/120 |
| Elmasonic xtra TT | 2x 30, 1x 60 |
| Power supply | 220 - 240 v - 50/60 Hz |
| Heating power (W) | 550 |
| Power (W) | 570 |
| Max. temperature (°C) | 70 |
| Preheating time (min) | ~ 15 |
| Max. air flow (m³/h) | 160 |
