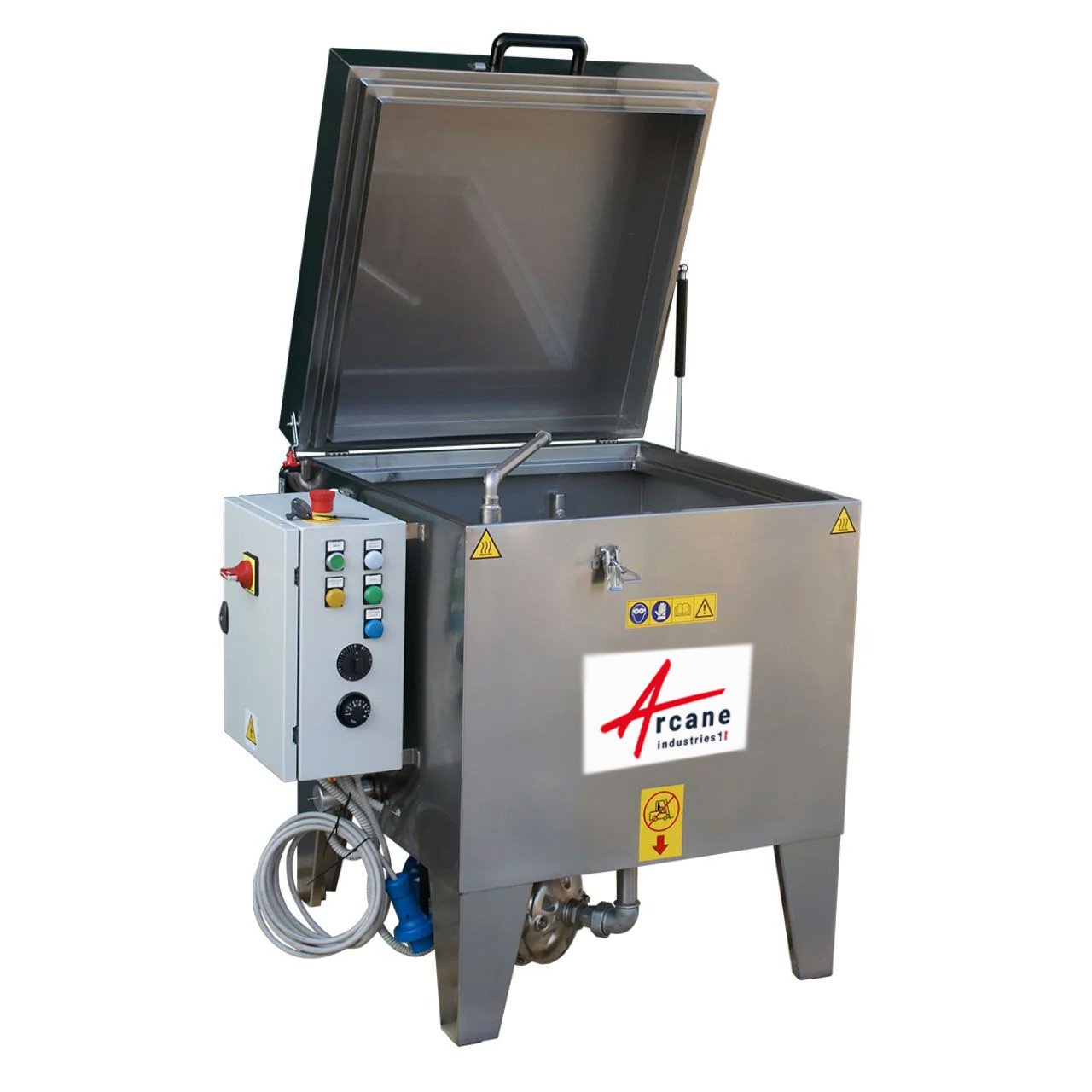

REF : ROTARY WASHER 600 (Ref: P40014.1)
The robust and reliable ROTARY WASHER 600, designed in AISI 304 stainless steel for high-performance, automated cleaning of your mechanical parts up to 600 mm.
Robust and hygienic design
-
100% AISI 304 stainless steel structure, corrosion-resistant.
-
Designed for intensive use in industrial environments.
Washing performance
-
Full automation of the cleaning process.
-
Uniform, fast washing with effective removal of grease, oils, and particles.
-
Reduced consumption of water and cleaning products.
Multiple applications
-
Suitable for miniature parts as well as large mechanical components.
-
Used in automotive, aerospace, metalworking, shipbuilding, industrial maintenance, and many other sectors.
Technical specifications

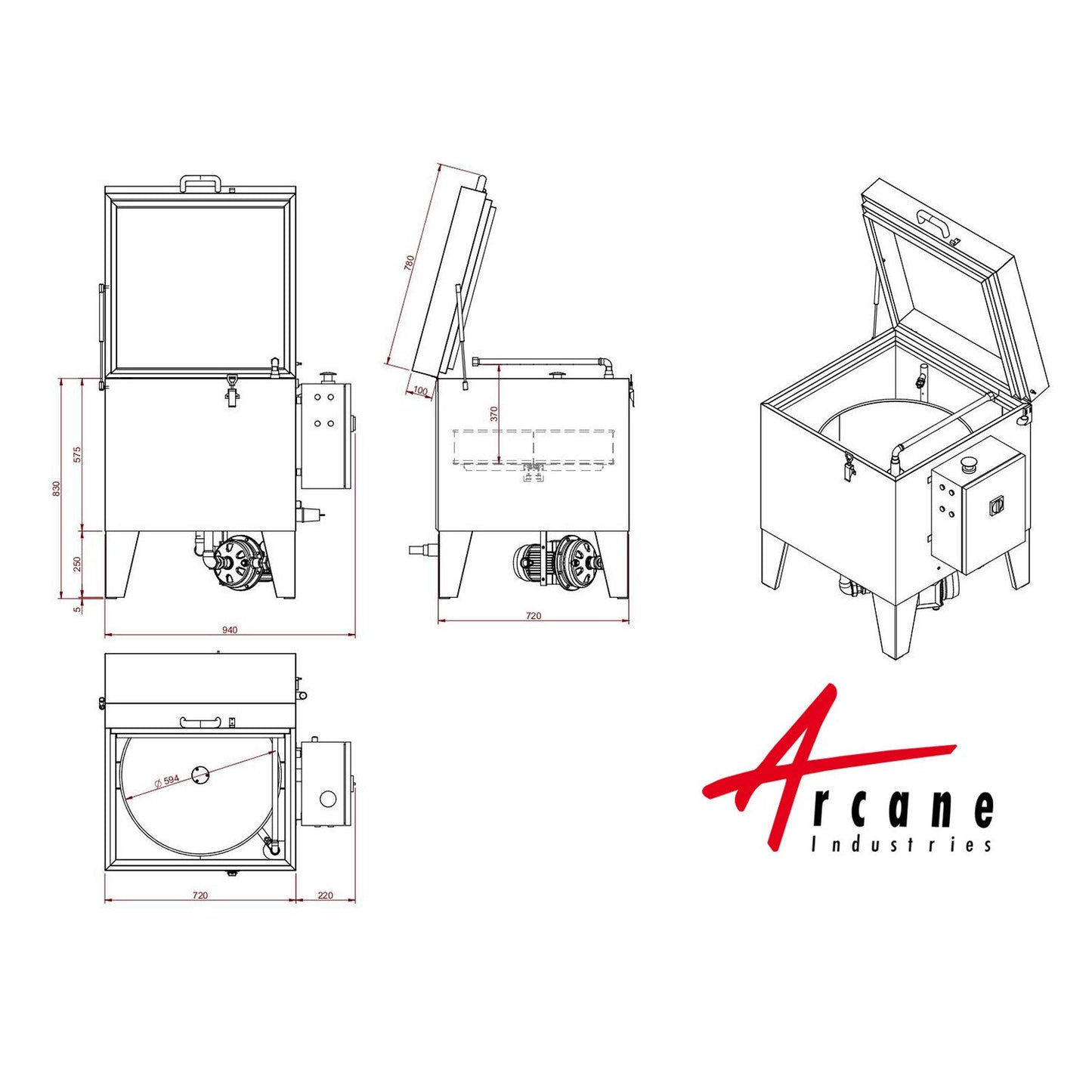

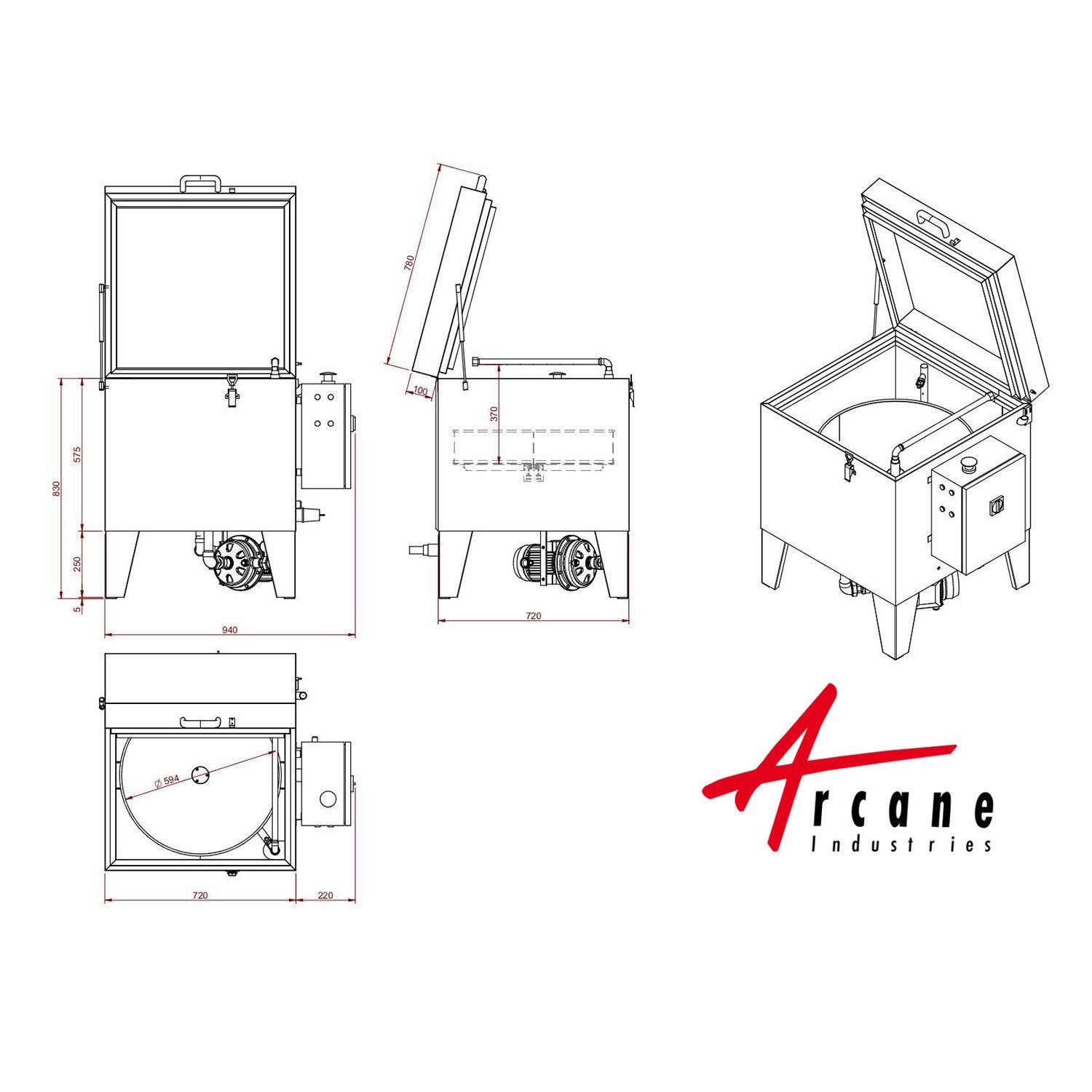

| Technical data | ROTARY WASHER 600 |
| External dimensions closed | 940 x 720 x 930 mm |
| External dimensions open | 940 x 720 x 1600 mm |
| Basket diameter | 600 mm |
| Usable height | 350 mm |
| Payload | 100 kg |
| Tank capacity | 75 L |
| Washing pump | 3 kW - 80 L/min - 30 nozzles - 2.5 bar |
| Heating power | 2 kW |
| Power supply | 230V 1PH 50Hz 8.6A |
| Temperature | 0° to 60° |
| Packaging dimensions | 1210 x 1050 x 1300 mm 80 kg |
Equipment:
- High-pressure wash lance
- Integrated temperature-controlled heating tank
- 304 Stainless Steel Machine
- Fold-down door with integrated gloves and window
- Pump suction filter
- Foot-pedal pump control
- LED-lit cleaning cabinet
- Compressed air blow gun for drying
Optional:
- Casters
Product benefits
-
Productivity gains: automated cleaning, fast cycles.
-
Durability: stainless steel construction, low wear, reduced maintenance.
-
Versatility: compatible with a wide range of parts and sectors.
-
Consistent quality: uniform cleaning, reduced scrap.
-
Competitiveness: excellent performance-to-cost ratio.
Applications
-
Mechanical workshops and maintenance.
-
Automotive and aerospace industries.
-
Metalworking and industrial production.
-
Shipbuilding and heavy equipment.
-
Cleaning components with oils and grease.
Arcane is committed
Arcane Direct is committed to providing durable equipment that complies with current standards, helping reduce energy consumption and optimize industrial processes.
Contact us to receive a custom quote and discover the industrial washing machine model best suited to your needs.
LEAD TIME
Lead time 6 to 12 weeks.
Downloadable documents
