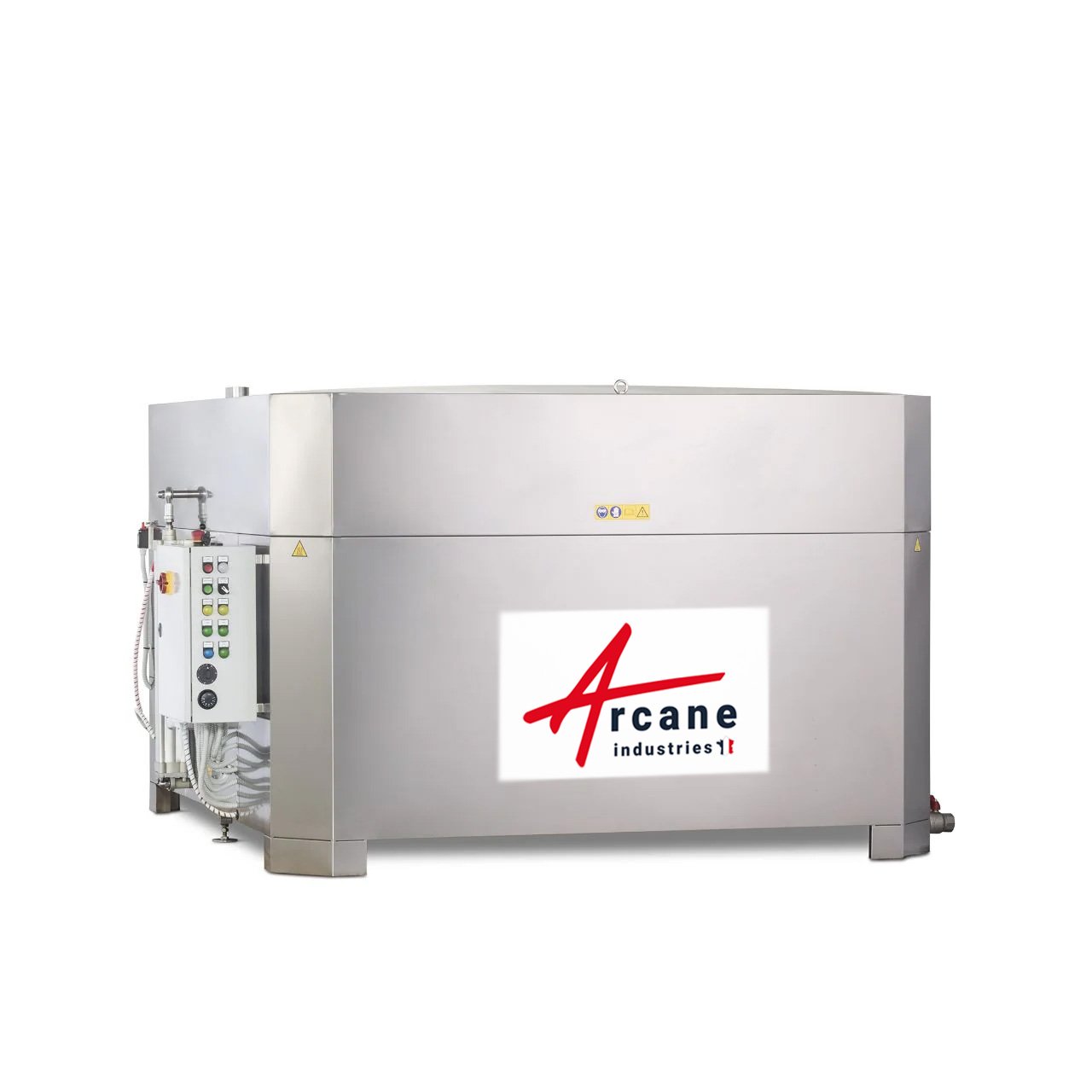

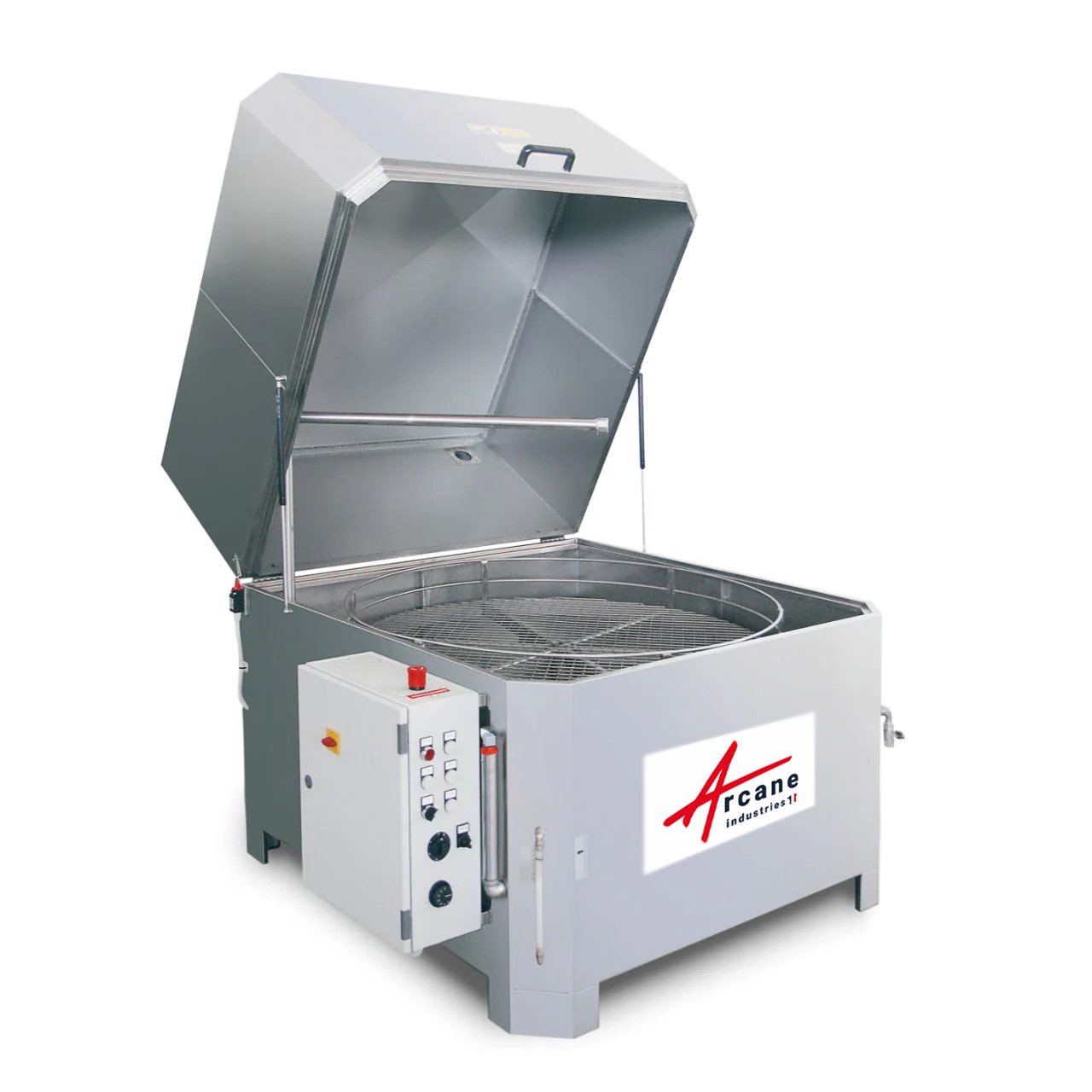

REF : ROTARY WASHER 1800
The ROTARY WASHER 1800, robust and reliable, designed in AISI 304 stainless steel for efficient and automated cleaning of your mechanical parts, up to 1800mm.
Robust and hygienic design
-
100% AISI 304 stainless steel structure, corrosion-resistant.
-
Designed for intensive use in industrial environments.
Washing performance
-
Full automation of the cleaning process.
-
Uniform and rapid washing, with effective removal of greases, oils and particles.
-
Reduced water and cleaning product consumption.
Multiple applications
-
Suitable for miniature parts as well as large mechanical components.
-
Used in the automotive, aeronautical, metallurgy, naval, and industrial maintenance sectors and many others.
Technical specifications
| Technical data | ROTARY WASHER 1800 |
| External dimensions (closed) | 2000x 2340 x 1350 mm |
| External dimensions (open) | 2360 x 2340 x 2910 mm |
| Basket diameter | 1800 mm |
| Usable height | 550 mm |
| Payload | 400 kg |
| Tank capacity | 270 L |
| Wash pump | 17.5kW - 2x 150l/min - 2x 70 nozzles - 4.5 bars |
| Heating power | 12 kW |
| Power supply | 400V 3PH 50Hz |
| Temperature | 0° to 60° |
| Packaging size | 2500 x 2120 x 1650mm 600kg |
Equipment
- Integrated thermoregulated heating tank
- Machine in 304 Stainless Steel
- Filtration
Optional:
- Vapor condensation kit
- Extension of usable height to 800mm
- Heavy-duty load reinforcement 800kg
- Thermal insulation
- Disk oil separator
- Automatic safety latch
- Pneumatic air drying
- Coalescence oil separator
- Tank filling and draining pump
Product advantages
-
Productivity gain: automated cleaning, fast cycles.
-
Durability: stainless steel construction, low wear, reduced maintenance.
-
Versatility: compatible with a wide range of parts and sectors.
-
Consistent quality: uniform cleaning, reduced rejects.
-
Competitiveness: excellent performance-to-cost ratio.
Areas of application
-
Mechanical and maintenance workshops.
-
Automotive and aeronautical industry.
-
Metallurgy and industrial production.
-
Shipyard and heavy equipment.
-
Cleaning of components with oils and greases.
Arcane's commitment
Arcane Direct is committed to providing durable equipment that complies with current standards, promoting reduced energy consumption and the optimization of industrial processes.
Contact us to receive a personalized quote and discover the industrial washing machine model best suited to your needs.
