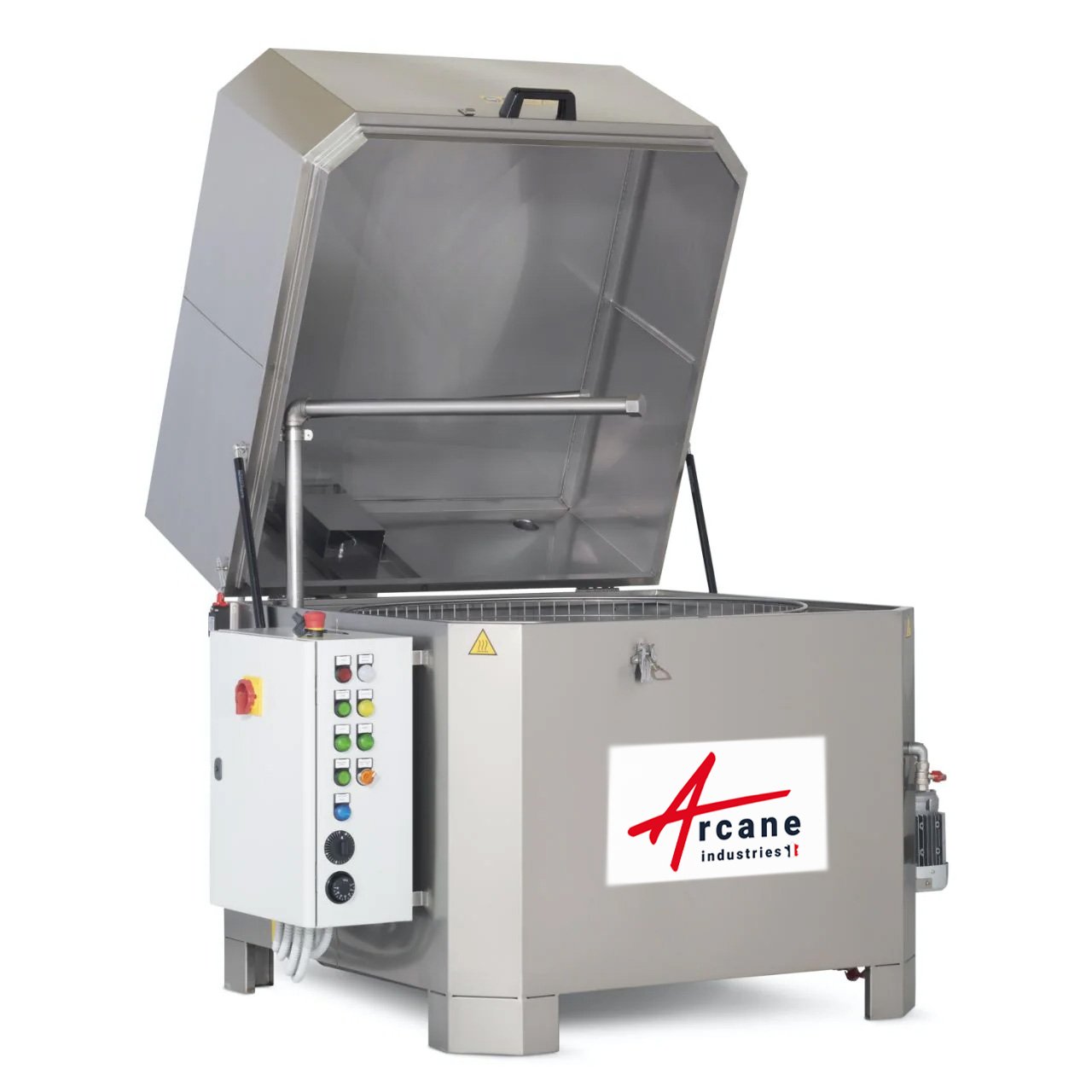

REF : ROTARY WASHER 870 (ref. P40010.1)
The robust and reliable ROTARY WASHER 870, designed in AISI 304 stainless steel for high-performance automated cleaning of your mechanical parts up to 870 mm.
Robust and hygienic design
-
100% AISI 304 stainless steel structure, corrosion-resistant.
-
Designed for intensive use in industrial environments.
Washing performance
-
Complete automation of the cleaning process.
-
Uniform, fast washing with effective removal of grease, oils, and particles.
-
Reduced consumption of water and cleaning products.
Multiple applications
-
Suitable for miniature parts as well as large mechanical components.
-
Used in automotive, aerospace, metalworking, shipbuilding, industrial maintenance, and many other sectors.
Technical specifications
| Technical data | ROTARY WASHER 870 |
| External dimensions closed | 1150 x 1240 x 1150 mm |
| External dimensions open | 1414 x 1240 x 1830 mm |
| Basket diameter | 870 mm |
| Usable height | 450 mm |
| Payload | 400 kg |
| Tank capacity | 130 L |
| Washing pump | 8.5 kW - 130 L/min - 46 nozzles - 3.5 bar |
| Heating power | 6 kW |
| Power supply | 400V 3PH 50Hz |
| Temperature | 0° to 60° |
| Packaging dimensions | 1340 x 1210 x 1400 mm 200 kg |
Equipment
- Integrated temperature-controlled heating tank
- 304 Stainless Steel Machine
- Filtration
Optional:
- Steam condensation kit
- Extension of usable height to 650 mm
- Thermal insulation
- Mobility casters
- Disc oil skimmer
- Automatic safety latch
- Pneumatic air drying
- Coalescing oil skimmer
- Tank filling and draining pump
Product benefits
-
Productivity gains: automated cleaning, fast cycles.
-
Durability: stainless steel construction, low wear, reduced maintenance.
-
Versatility: compatible with a wide range of parts and sectors.
-
Consistent quality: uniform cleaning, reduced scrap.
-
Competitiveness: excellent performance-to-cost ratio.
Areas of application
-
Mechanical workshops and maintenance.
-
Automotive and aerospace industries.
-
Metalworking and industrial production.
-
Shipbuilding and heavy equipment.
-
Cleaning components with oils and grease.
Arcane is committed
Arcane Direct is committed to providing durable equipment that complies with current standards, helping reduce energy consumption and optimize industrial processes.
Contact us to receive a custom quote and discover the industrial washing machine model best suited to your needs.
LEAD TIME
Lead time 6 to 12 weeks.
