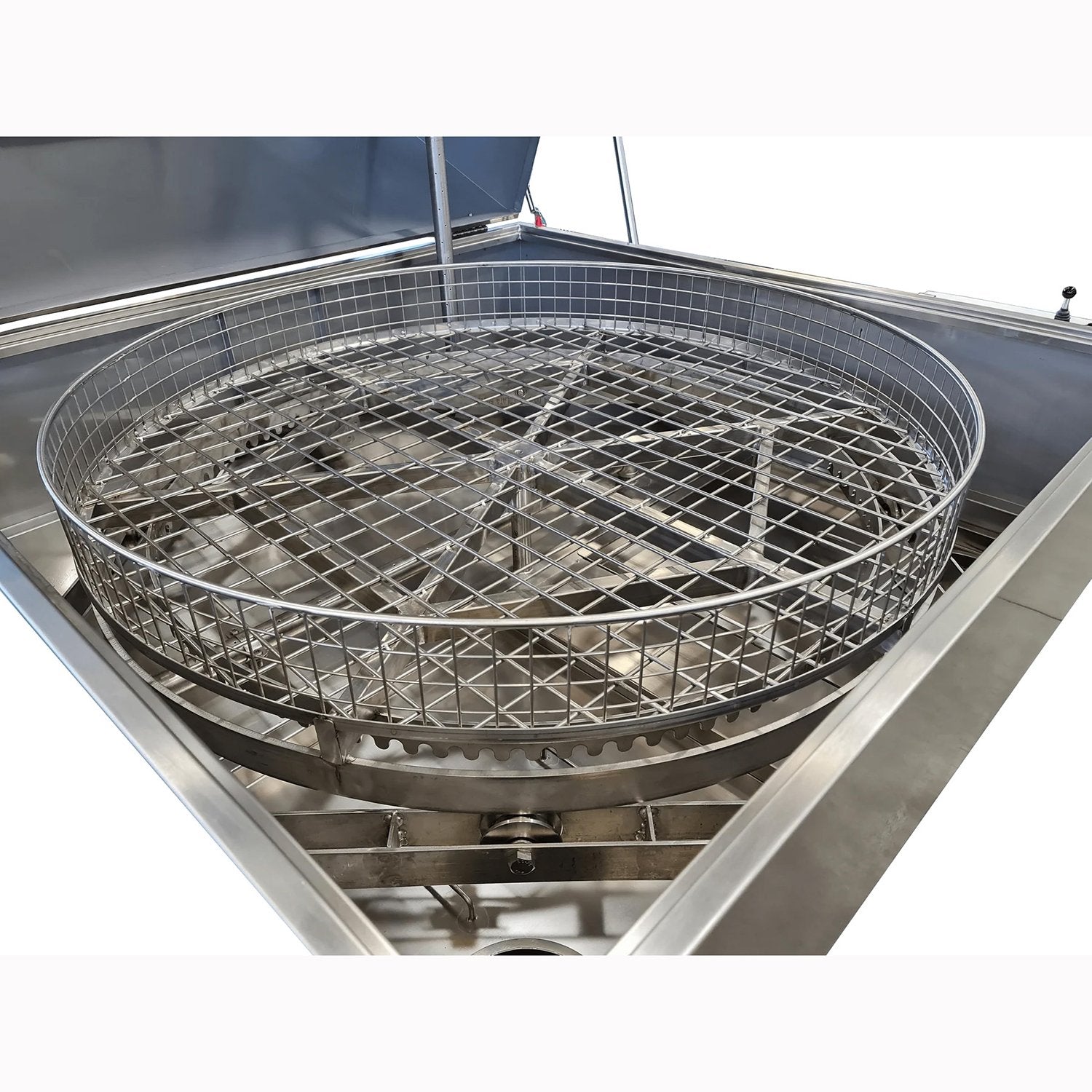

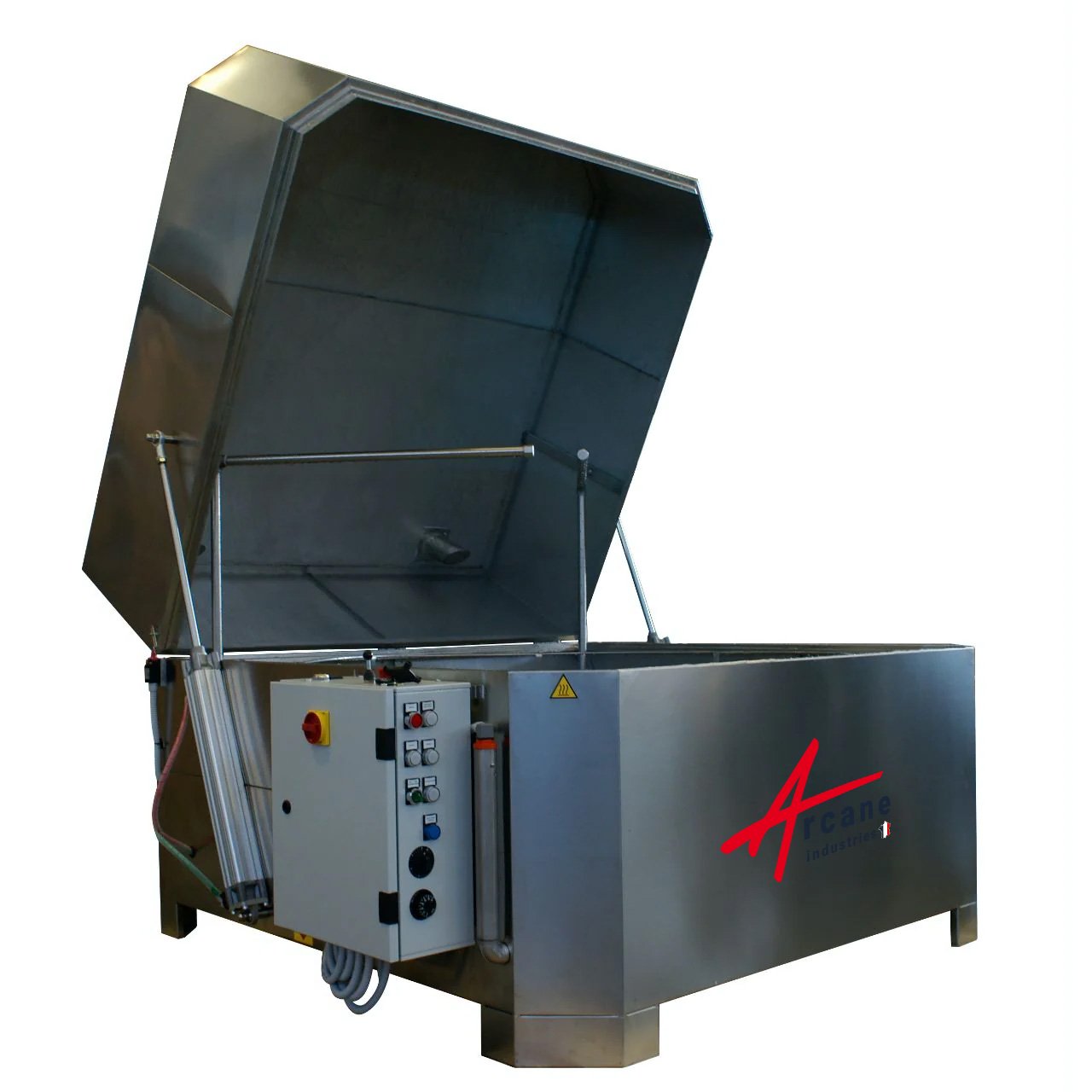

REF : ROTARY WASHER 1460
The robust and reliable ROTARY WASHER 1460, designed in AISI 304 stainless steel for high-performance, automated cleaning of your mechanical parts up to 1460mm.
Robust and hygienic design
-
100% AISI 304 stainless steel structure, corrosion-resistant.
-
Designed for intensive use in industrial environments.
Washing performance
-
Full automation of the cleaning process.
-
Uniform and fast washing, with effective removal of grease, oils, and particles.
-
Reduced consumption of water and cleaning products.
Multiple applications
-
Suitable for miniature parts as well as large mechanical components.
-
Used in automotive, aerospace, metallurgy, shipbuilding, industrial maintenance, and many other sectors.
Technical specifications
| Technical data | ROTARY WASHER 1460 |
| External dimensions closed | 1600x 1990 x 1250 mm |
| External dimensions open | 2120 x 1990 x 2440 mm |
| Basket diameter | 1460 mm |
| Usable height | 550 mm |
| Payload | 400 kg |
| Tank capacity | 250 L |
| Washing pump | 12kW - 150l/min - 70 nozzles - 5.5 bar |
| Heating power | 9 kW |
| Power supply | 400V 3PH 50Hz |
| Temperature | 0° to 60° |
| Packaging dimensions | 1810 x 2350 x 1550mm 360kg |
Equipment
- Integrated temperature-controlled heating tank
- 304 Stainless Steel Machine
- Filtration
Optional:
- Steam condensation kit
- Extension of usable height to 900mm
- Thermal insulation
- Disc oil skimmer
- Automatic safety latch
- Pneumatic air drying
- Coalescing oil skimmer
- Tank filling and draining pump
Product benefits
-
Productivity gains: automated cleaning, fast cycles.
-
Durability: stainless steel construction, low wear, reduced maintenance.
-
Versatility: compatible with a wide range of parts and sectors.
-
Consistent quality: uniform cleaning, reduced scrap.
-
Competitiveness: excellent performance-to-cost ratio.
Areas of application
-
Mechanical workshops and maintenance.
-
Automotive and aerospace industries.
-
Metallurgy and industrial production.
-
Shipbuilding and heavy equipment.
-
Cleaning components with oils and grease.
Arcane is committed
Arcane Direct is committed to providing durable equipment that complies with current standards, helping to reduce energy consumption and optimize industrial processes.
Contact us to receive a custom quote and discover the industrial washing machine model best suited to your needs.
LEAD TIME
Lead time 6 to 12 weeks.
